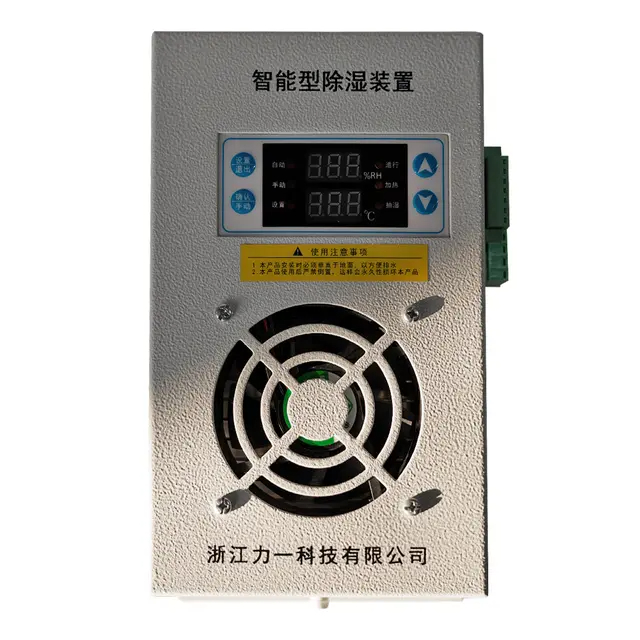

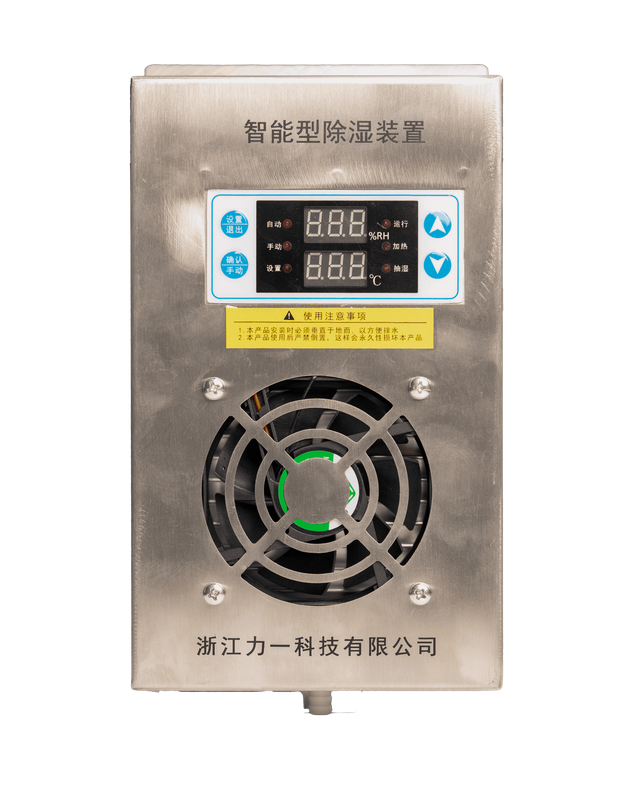

Switchgear Dehumidifiers LYCS-DB120

The switchgear dehumidifier LYCS-DB120 is a specialist device designed to maintain optimal humidity levels within electrical switchgear cabinets. Its primary function is to prevent condensation, corrosion, and malfunctions caused by excessive moisture, ensuring reliable and safe operation of the switchgear. With its compact design and powerful dehumidification capabilities, this unit is ideal for a range of industrial and commercial settings.

Quantity:
Availability:





Inquire Add to Basket

Switchgear Dehumidifiers LYCS-DB120 Moisture Prevention for Electrical Equipment Industrial Dehumidification Systems Energy-Efficient Dehumidification Switch cabinet dehumidifier

Product Advantage

Technical Parameters

Application Scenarios

FAQ

Efficient Dehumidification: The unit boasts a high moisture removal rate, quickly and effectively reducing humidity levels within the switchgear cabinet to prevent condensation and associated risks.
Intelligent Humidity Control: Equipped with a sensitive humidity sensor, the dehumidifier automatically adjusts its operation based on the ambient humidity, ensuring consistent and optimal conditions.
Robust Construction: Built with durable materials and a rugged design, the dehumidifier is suitable for harsh environments, resisting dust, dirt, and other contaminants.
Easy Installation and Maintenance: The unit comes with a detailed installation guide and requires minimal effort to set up. Regular maintenance is straightforward, with easy-to-access components for cleaning and replacement.
Energy Efficient Operation: Featuring advanced energy-saving technologies, the dehumidifier operates efficiently, reducing power consumption and operating costs.
Comprehensive Safety Features: Including overheat protection, automatic shut-off in case of malfunction, and electrical safety certifications, the dehumidifier ensures safe operation in all conditions.

name	LYCS-DB120
Working power supply	AC90-240V
Dehumidification efficiency	450ml/day(Under working conditions60W 35℃ 80%RH)
heating power	50-500W
Dehumidification temperature	5℃-45℃
Dehumidification power	80W,100W,120W
Operating temperature	-25℃-85℃
Humidity detection range	20%RH-98%RH
Temperature detection range	-25℃-125℃
Dehumidification start value	45%RH-98%RH
Temperature start value	1℃-55℃
Humidity measurement accuracy	±3%RH
Temperature measurement accuracy	±1℃
Display method	Double row 3 digital display
display resolution	0.1
shell material	304 stainless steel
Dimensions	168✖101✖223mm(Width✖depth✖height)
Size of the opening	Wall-mounted (Fixed)
Dehumidification volume	1-2m³
aqueduct	Silica gel D10mm、L1.5m
Remote monitoring background	Optional

Industrial Settings: In manufacturing plants and factories, where electrical switchgear is crucial for powering machinery and processes, the dehumidifier ensures reliable operation by preventing moisture-related failures.
Commercial Buildings: In large commercial buildings with complex electrical systems, the dehumidifier helps maintain the integrity of the switchgear, preventing costly downtime and enhancing safety.
Outdoor Installations: For switchgear cabinets located in outdoor environments prone to high humidity, the dehumidifier provides critical protection against corrosion and weather-related damage.
Data Centers and IT Facilities: In data centers where humidity control is essential for maintaining the integrity of sensitive electronic equipment, the dehumidifier plays a vital role in ensuring optimal conditions.

Q: How often does the filter need to be replaced?
A: Filter replacement depends on the operating environment and humidity levels. Typically, we recommend checking and replacing the filter every 3-6 months.
Q: Does the dehumidifier have a continuous drainage option?
A: Yes, the unit comes with a continuous drainage option, allowing for unattended operation and automatic water removal.
Q: What is the operating temperature range of the dehumidifier?
A: The dehumidifier is designed to operate within a temperature range of 5°C to 35°C (41°F to 95°F).
Q: Is the unit noisy during operation?
A: The dehumidifier is designed for quiet operation, generating minimal noise during use. This ensures it won't disturb the surrounding environment.
Q: What safety certifications does the dehumidifier have?
A: The dehumidifier is certified to meet various international safety standards, including UL, CE, and CCC, ensuring its safe use in different regions.
