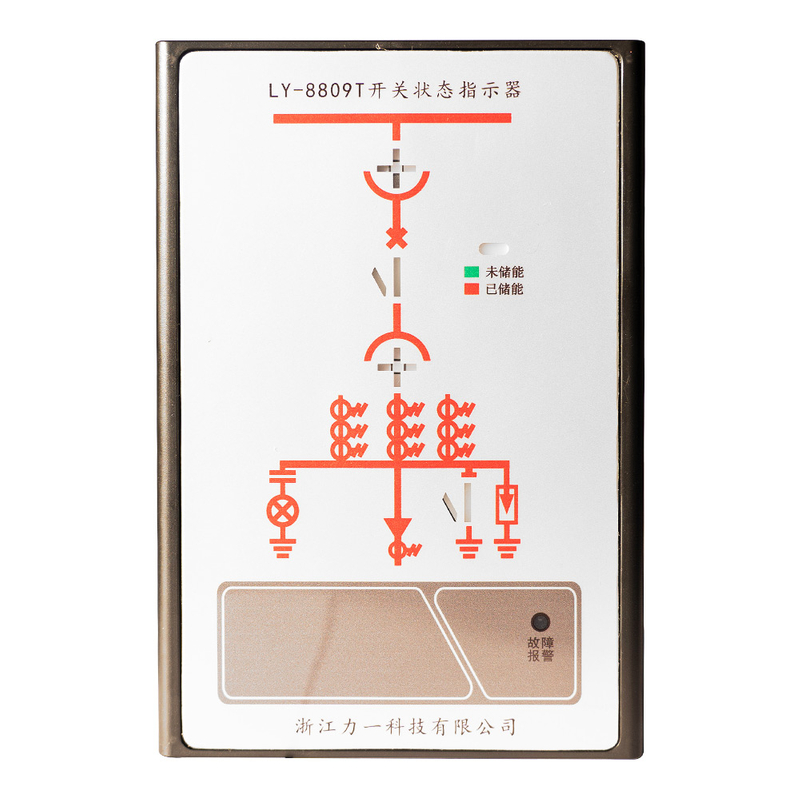

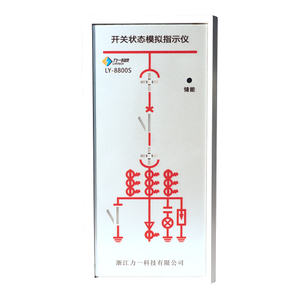

The LY-8809 Switchgear Status Indicator is a high-performance monitoring solution designed to provide real-time, accurate insights into the operational status of switchgear in industrial power systems. Developed by Zhejiang Liyi Technology Co., Ltd., this advanced device integrates multi-parameter monitoring, visual and audible alarms, and seamless communication capabilities to enhance workplace safety, streamline maintenance workflows, and ensure the reliability of power distribution networks. Compatible with low to high-voltage switchgear, it features a durable design that withstands harsh industrial environments, while its user-friendly interface makes it accessible to both technical and non-technical personnel.
The indicator simultaneously tracks critical switchgear parameters, including circuit breaker position (open/closed), grounding switch status, electrical current magnitude, and component temperature. This all-in-one monitoring capability detects potential issues such as over-current or abnormal temperature rises, enabling proactive maintenance and preventing costly failures.
Equipped with bright LED indicators and loud audible alerts, the LY-8809 immediately notifies operators of abnormal conditions—such as unexpected switch positions or over-current situations. Alarms can be tailored to different fault levels, ensuring timely responses to critical issues and minimizing downtime.
The easy-to-read digital display provides real-time updates on switchgear status, while intuitive icons and menus simplify navigation. Even non-technical staff can quickly access key information, reducing operational complexity and improving overall efficiency.
Featuring RS485, Modbus, and Ethernet interfaces, the indicator seamlessly integrates with existing SCADA (Supervisory Control and Data Acquisition) systems. This enables remote monitoring and control from central control rooms or mobile devices, enhancing operational flexibility and simplifying system management.
Built with high-quality, dust-tight, and water-resistant materials, the LY-8809 withstands electromagnetic interference and harsh environmental conditions (operating temperature: -20℃~65℃). Its reliable internal components ensure long-term, continuous operation without frequent maintenance, reducing lifecycle costs.
The LY-8809 comes with standard features like Dynamic Simulation Diagram and Self-Fault Detection Function, while offering optional configurations such as Temperature and Humidity Control and Manual Function. This flexibility allows users to customize the device to their specific application needs.
Provide grid operators with real-time switchgear status information, enabling rapid response to faults and minimizing disruptions to power supply. Ensure the stability and reliability of large-scale power distribution systems.
Monitor switchgear powering production machinery and equipment, detecting potential issues before they cause unplanned downtime. Improve productivity by maintaining consistent power distribution and reducing maintenance costs.
Ensure uninterrupted power supply for life-support systems, medical equipment, and lighting. The real-time monitoring and alarm functions help address power-related issues promptly, safeguarding patient safety.
Support reliable operation of electrical systems in airports, train stations, and subway systems—including lighting, escalators, and communication equipment. Prevent power outages and maintain smooth passenger flow.

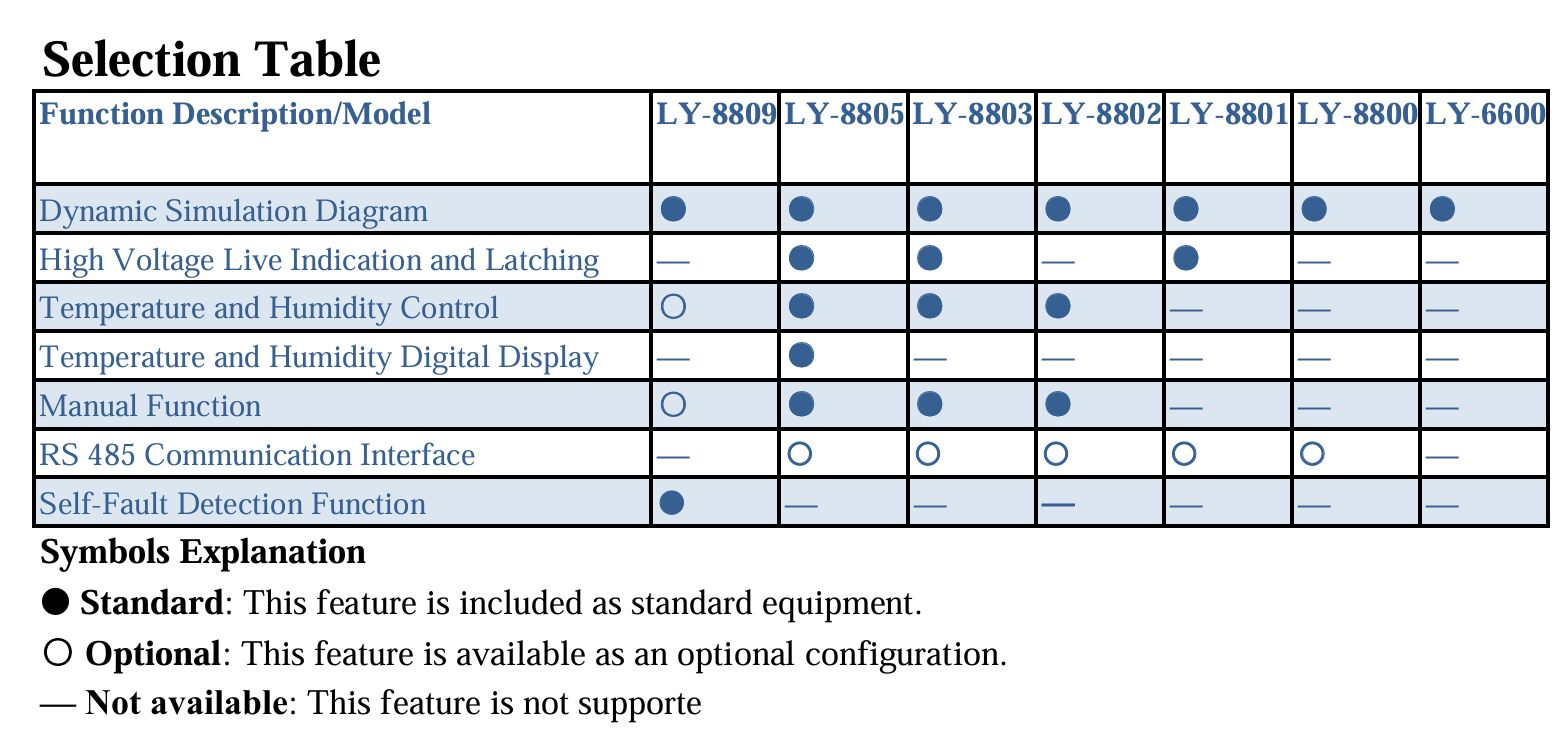

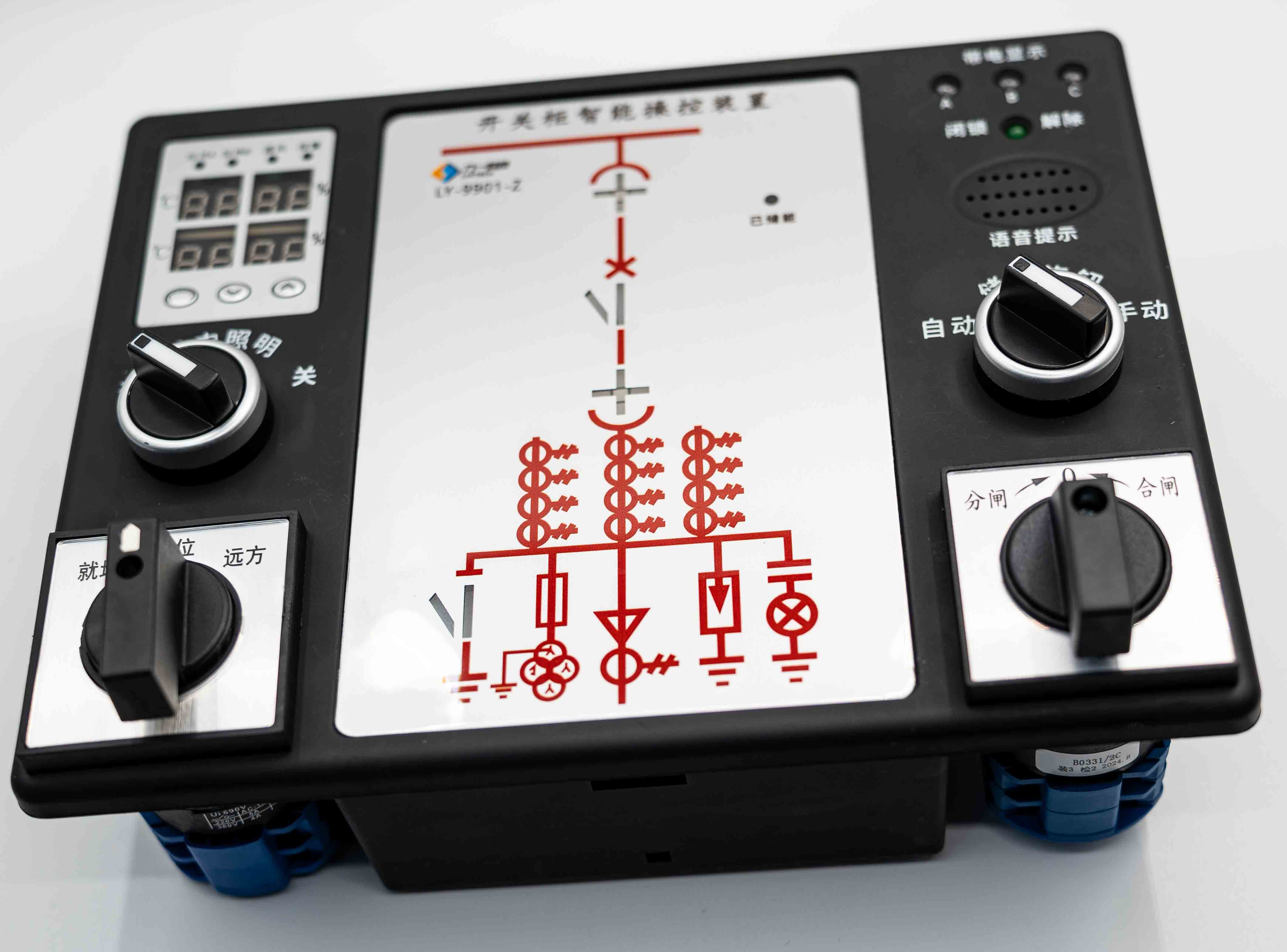

Choose the LY-8809 for applications requiring basic yet reliable switchgear status monitoring with flexible upgrade options. Below is a comparison with key models to aid decision-making:
Function | LY-8809 | LY-8805 | LY-8801 | LY-6600 |
Dynamic Simulation Diagram | ● | ● | ● | - |
High Voltage Live Indication & Latching | ● | ● | - | ● |
Temperature & Humidity Control | O | ● | - | O |
Temperature & Humidity Digital Display | O | ● | - | - |
RS485 Communication Interface | O | O | ● | O |
Self-Fault Detection Function | ● | ● | - | - |
Note: ●=Standard, O=Optional, -=Not Available. The LY-8809 is ideal for users needing essential monitoring features with the flexibility to add temperature and humidity control as required.
Mount the indicator in the designated position on the switchgear, ensuring proper ventilation and access to sensors.
Connect the power supply (AC/DC 110V~220V) and wire sensors (A/B/C phases, temperature/humidity sensors) according to the wiring diagram.
Disconnect live display sensor terminals during pressure resistance testing as required.
Use the interface buttons to set alarm thresholds, communication parameters, and display preferences.
Monitor real-time status via the digital display and LED indicators; respond to alarms promptly by checking fault details.
Integrate with SCADA systems using RS485 or Ethernet interfaces; configure the Modbus protocol for data transmission.
Access remote monitoring features via compatible devices by following the network setup instructions in the user manual.
