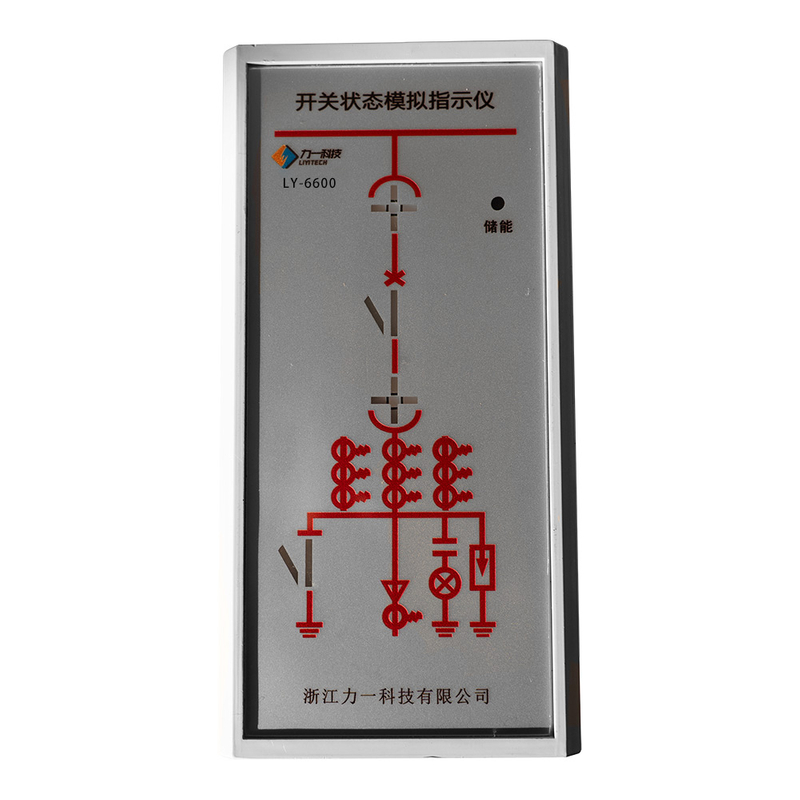

Switchgear Status Indicator LY-6600

Product Advantages

Versatile Compatibility: Seamlessly integrates with a wide range of switch cabinets and control systems, eliminating the need for extensive modifications to existing equipment.

Robust Durability: Constructed with high-quality industrial materials, it withstands harsh environments such as high temperature, humidity, and dust, ensuring long-term stable operation.

Customizable LED Options: Supports customization of LED colors, flashing patterns, and brightness levels to adapt to different on-site visual needs.

Easy Installation: Offers multiple mounting methods (e.g., panel-mounted), simplifying deployment across various switch cabinet setups and reducing installation time.

Enhanced Visibility: Bright, high-visibility LEDs ensure clear status identification even in dimly lit plants or outdoor areas, improving operational efficiency.

Reliable Performance: Backed by strict quality control and certifications, it maintains consistent performance in critical industrial applications.

Anti-Electromagnetic Interference: Complies with the IEC255-22 standard, resisting electromagnetic interference from surrounding power equipment.

IP65 Protection Rating: Dustproof and waterproof, making it suitable for both indoor and outdoor switchgear installations.

Technical Specifications

1. Manufacturing: Monitor equipment statuses on production lines for enhanced productivity.

2. Power Distribution: Ensure efficient management of electrical distribution systems with real-time status updates.

3. Building Automation: Facilitate building automation systems by providing clear status indications for various components.

4. Telecommunications: Monitor switch cabinets in telecommunications infrastructure for uninterrupted service.

5. Transportation: Ensure safety and reliability in transportation infrastructure by monitoring critical switch statuses.

Applications

Power Distribution Systems: Monitors switchgear status in substations and distribution rooms, ensuring efficient management of electrical distribution and reducing power outage risks.

Manufacturing Industry: Tracks equipment status on production lines (e.g., motor control switchgear), improving production continuity and reducing downtime.

Building Automation: Integrates with building electrical systems to monitor switch cabinets for lighting, HVAC, and elevator power, enhancing building energy management.

Telecommunications Infrastructure: Ensures uninterrupted service by monitoring switch cabinets in telecom towers and data centers, preventing failures caused by switch misoperation.

Transportation Infrastructure: Used in railway signal cabinets and highway power supply systems to maintain safe operation of transportation networks.

Selection Guide

When selecting a switchgear status indicator, focus on the following factors to match your needs:

Voltage Level: The LY-6600 is optimized for medium-voltage switchgear (3~35KV). For low-voltage systems, consider Liyi’s LY-8800 series.

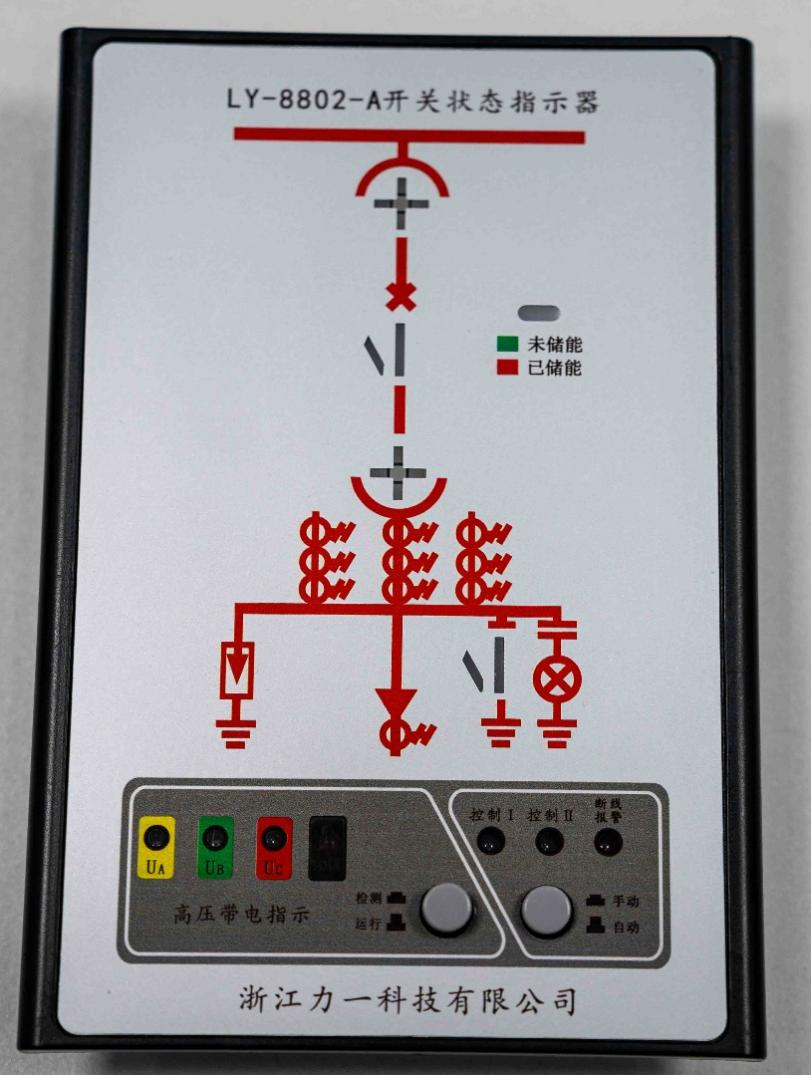

Indication Needs: If you require basic status (position, breaker, grounding), the LY-6600 is ideal. For advanced functions (e.g., bar graph display), choose models like LY-8808.

Installation Environment: For outdoor or dusty areas, prioritize the LY-6600’s IP65 rating; indoor clean environments may use cost-effective alternatives.

Compatibility: Confirm the LY-6600 matches your switch cabinet brand (e.g., ABB, Siemens) — it supports most mainstream models.

Operation Guide

Installation Preparation

Ensure the installation environment meets the ambient temperature (-20℃ ~ 65℃) and humidity (≤95%RH) requirements.

Select a panel-mounted position with clear visibility for operators, avoiding direct sunlight or water splashes.

Wiring & Power Connection

Connect the working power supply to AC/DC 110V ~ 220V (confirm polarity for DC power).

Connect signal wires to corresponding terminals: Terminal 1 (Working Position), Terminal 2 (Test Position), Terminal 3 (Circuit Breaker Closed), Terminal 4 (Circuit Breaker Open), Terminal 6 (Grounding Position).

Status Recognition

Green LED (Working Position): Illuminates when the switch is in the working state.

Yellow LED (Test Position): Illuminates when the switch is in the test state.

Red LED (Circuit Breaker Closed): Illuminates when the breaker is closed.

Blue LED (Grounding Position): Illuminates when the grounding switch is closed.

Routine Maintenance

Weekly check: Ensure all LEDs work normally and wiring terminals are tight.

Monthly inspection: Clean the device surface to prevent dust from blocking indicators.
