Thermal Overload Relay

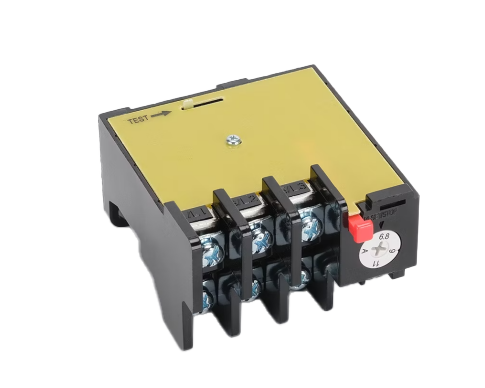

The LY36-32 thermal overload relay is engineered for AC motor protection, delivering precise overload and phase-loss detection in 690V/0.25A-160A applications across continuous or intermittent duty cycles. Utilizing a bimetallic thermal deformation mechanism paired with electromagnetic tripping, it safeguards motors from overheating damage by disconnecting circuits during abnormal current conditions. Compliant with GB14048.4 and IEC60947-4-1 standards, it features integrated temperature compensation and manual/auto-reset modes for industrial pumps, HVAC systems, and production line motors.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Thermal Overload Relay Motor Protection Relay Industrial Temperature Compensated Relay Wide Current Range Thermal Relay HVAC Motor Overload Protector
Product Advantages
Technical Specifications
Applications
FAQ

1. Precision Temperature Compensation

  - ±5% trip accuracy across extreme temperatures (-50℃~+40℃) with anti-misfiring design.

2. Dual Reset Flexibility

  - Manual reset (immediate intervention) or auto-reset (post-cooling recovery) with adjustable delay (2-10min).

3. Broad Current Coverage

  - 0.25A-160A adjustable range (±3% precision), supporting motors from micro (0.37kW) to mid-power (90kW).

4. Robust IP54 Protection

  - Fully sealed construction resists dust, oil mist, and 90%RH humidity (non-condensing).


Parameter
Value
Rated Voltage (Ue)
AC 380V/690V
Current Range (Ie)
0.25A-160A (12-step scaling)
Contact Capacity
5A/AC-15 (auxiliary contact)
Trip Time
≤20min at 1.2×Ie
Protection Rating
IP54
Reset Mode
Manual/Auto selectable
Operating Temperature
-50℃ ~ +40℃
Compliance
GB14048.4
IEC60947-4-1

- Industrial Motors: Protects pump, conveyor, and fan motors from winding burnout.

- Compressor Systems: Prevents refrigeration compressor seizure via phase-loss cutoff.

- HVAC Units: Guards fan motors in cooling towers and high-humidity environments.

- Agricultural Machinery: Withstands vibration/temperature swings in irrigation pumps.


Q1: How to set current values?

A: Align knob with motor nameplate rating; reduce 5%-10% if ambient >35℃.

Q2: Auto vs. manual reset?

A: Auto-reset suits unmanned systems; manual reset requires post-fault inspection.

Q3: Impact of improper mounting angle?

A: >5° tilt causes bimetallic distortion errors – strict vertical alignment required.

Q4: Compatible with DC motors?

A: No. LY36 supports AC 50/60Hz only; use DC-specific relays for such applications.
