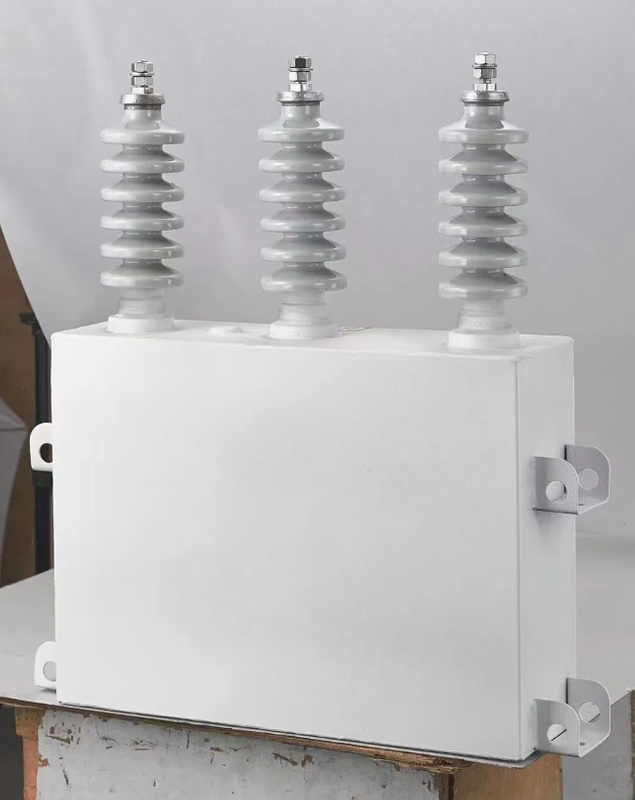

High Voltage Shunt Capacitor

This series of high-voltage shunt capacitors is designed for 11kV/33kV power systems, providing reactive power compensation, power factor correction, and harmonic filtering. Featuring an all-film dielectric structure and eco-friendly C101 insulating oil (PCB-free, ignition point >300°C), the capacitors offer rated capacities from 50 kvar to 750 kvar and are suitable for harsh indoor/outdoor environments (-40°C to +45°C, altitude ≤2000 m). Compliant with GB/T 16927 and DL/T 604 standards, they integrate built-in discharge resistors and external fuse protection, withstand steady-state overvoltage (1.3Un for 1 minute), and seismic activity up to level 7. Widely used in transmission systems, industrial VFDs, and renewable energy plants.

Customization: Available for different voltage and capacity configurations.
Applications: Ideal for power factor correction, energy savings, and voltage improvement.
Durability: Corrosion-resistant surface treatment for extended lifespan.

Quantity:
Availability:





Inquire Add to Basket

All-Film High Voltage Capacitor C101 Eco-Friendly Capacitor Reactive Power Compensation Capacitor GB/T Certified Power Capacitor Salt-Resistant Shunt Capacitor

Product Advantages

Technical Parameters

Applications

Advantages

FAQ

Product Advantages

1. Ultra-Low Loss & High Stability

Loss Tangent: ≤0.0002; Power Loss: <0.2 W/kvar; Temperature Rise: ≤15 K at full load.
The ultra-low loss and exceptional stability of this capacitor ensure minimal energy dissipation, leading to high efficiency in power systems. This feature not only reduces operational costs but also enhances the reliability of the power grid by maintaining optimal performance under varying loads.
With a temperature rise of just 15 K at full load, this capacitor ensures that it operates within safe thermal limits, preventing overheating that could otherwise shorten its lifespan or cause failures.
Lifespan: ≥20 years; Capacitance Tolerance: ≤±3% (phase-to-phase).
Engineered for durability, the capacitor offers a lifespan of at least 20 years, making it a cost-effective long-term solution for reactive power compensation. Its phase-to-phase capacitance tolerance is maintained within a strict limit of ±3%, ensuring consistent performance over its extended operational life.

2. All-Film Dielectric Technology

Self-Healing Metallized Film Structure: Capable of withstanding 13.2 kV (max operating voltage).
The capacitor uses an all-film dielectric technology, a self-healing metallized film structure, which significantly enhances its reliability. When a failure occurs in the dielectric, the self-healing property allows it to automatically restore the integrity of the capacitor, ensuring continued operation without the need for immediate replacement.
Rupture Energy: 15 kJ, surpassing the safety of oil-immersed capacitors.
With 15 kJ rupture energy, this capacitor offers superior safety compared to traditional oil-immersed capacitors. In case of an overload or failure, it safely discharges the stored energy, reducing the risk of catastrophic failures, thus providing a higher level of operational security.

3. Eco-Friendly & Extreme Environment Resilience

Chlorine-Free C101 Oil: Ensures an environmentally friendly insulating medium.
The capacitor is filled with chlorine-free C101 oil, which eliminates harmful substances typically found in traditional capacitors, making it a greener option for the environment. This choice supports eco-conscious power solutions without compromising performance.
IP54 Protection: Suitable for environments with high humidity (≤95% RH) and salt fog.
The IP54 rating ensures that the capacitor is highly resistant to dust, moisture, and water splashes, providing reliable protection even in harsh environments such as coastal areas with high salt fog or high-humidity regions. This feature enhances the product's longevity and makes it highly suitable for various outdoor and industrial applications.

4. Customizable Configurations

Capacity Gradation: Available in sizes from 50–750 kvar to meet specific system needs.
This capacitor offers customizable capacity options ranging from 50 kvar to 750 kvar, allowing it to be tailored to specific grid requirements or industrial applications. Whether it’s for small-scale or large power systems, you can select the optimal size for your needs.
Design Options: Available in single-phase and three-phase designs, with toroidal core options.
The flexibility in design allows the capacitor to be used in different types of electrical systems. You can choose between single-phase and three-phase configurations, as well as a toroidal core design for specific use cases. This versatility makes it compatible with a variety of transformer systems, including rectifier transformers and power transformer systems, ensuring seamless integration with existing infrastructure.

Parameter

Value

Rated Voltage

11 kV

33 kV

Rated Capacity

50–750 kvar (customizable)

Frequency

50 Hz

Operating Temperature

-40°C to +45°C

Loss Tangent (tanδ)

≤0.0002

Capacitance Tolerance

≤3% (phase-to-phase)

≤5% (total)

Protection

External fuse + built-in discharge resistor

Certifications

GB 311.1

DL/T 604

CCC

Applications

Urban Infrastructure: Perfect for enhancing the power quality of city electrical networks, especially in urban areas where grid stability and efficiency are critical. It compensates for reactive power and optimizes energy use, reducing voltage fluctuations and improving overall system reliability.
Transmission Systems: Can be connected in parallel to substation busbars, improving power factor (greater than 0.95) and reducing line losses. This is essential for ensuring that electricity transmission is efficient and that the infrastructure can handle increased demand without major power quality issues.
Industrial VFDs (Variable Frequency Drives): Used to compensate reactive power for heavy-duty drives, such as those found in rolling mills, mining hoists, and other machinery with high starting loads. This results in smoother operation and reduced strain on the electrical system.
Renewable Plants: Harmonic filtering is essential for wind and solar collector lines, ensuring that the Total Harmonic Distortion (THD) stays below 5%. This keeps the system stable, efficient, and less prone to damage caused by harmonic distortions.
Harsh Environments: Designed for corrosion-resistant operation in chemical and coastal zones, where exposure to harsh elements is common. This capacitor’s rugged design ensures it remains reliable even in environments with high salt fog or corrosive gases, extending its operational lifespan.

High Voltage Shunt Capacitor Application

Advantages

Enhanced Energy Efficiency: By compensating for reactive power, this capacitor optimizes energy distribution, significantly improving system efficiency. This reduction in energy losses helps lower operational costs while enhancing the overall performance of power systems, making it an indispensable component in both industrial and grid applications.
Long-Lasting Durability: Constructed with high-quality materials and designed for extreme environments, the capacitor offers exceptional longevity. Its corrosion-resistant casing and robust design ensure reliable performance, even in challenging conditions such as high humidity, salt fog, and temperature fluctuations, reducing maintenance requirements and extending service life.
Versatile Application: This capacitor is versatile, making it suitable for a broad range of electrical systems across diverse industries, including power generation, transmission, and industrial operations. Its adaptability to both high and medium-voltage environments makes it ideal for use in power grids, factories, and renewable energy installations, offering a solution that meets varying operational demands.
Comprehensive Customer Support: As part of our commitment to excellence, we provide complete after-sales support, from customization assistance to installation guidance. Our team of experts ensures that customers receive tailored solutions and ongoing technical support, ensuring that the capacitor performs optimally throughout its lifecycle.
