LY-DXN-T
Liyi
LY-DXN-T

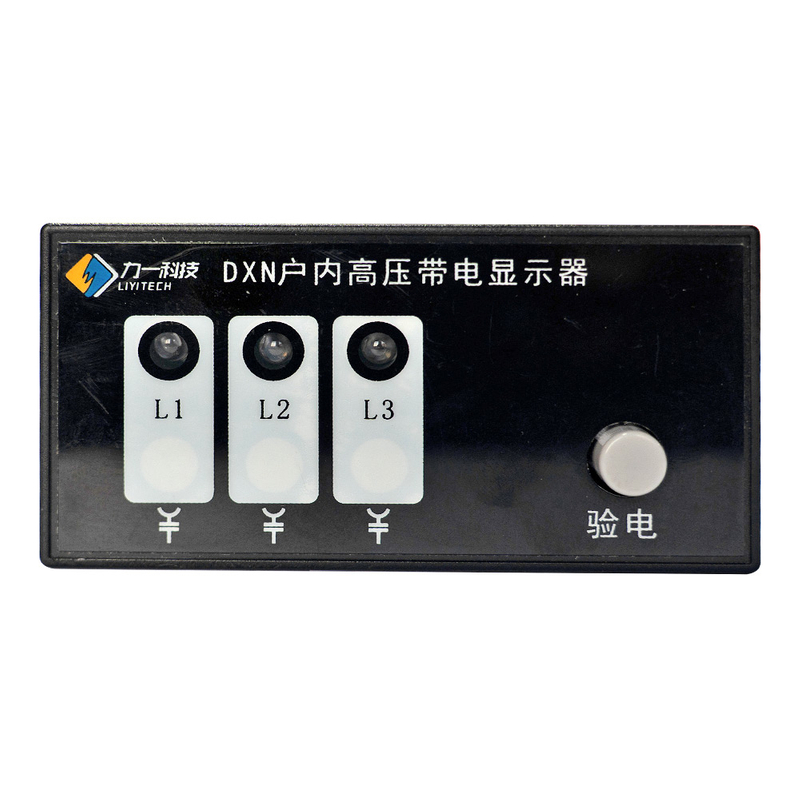

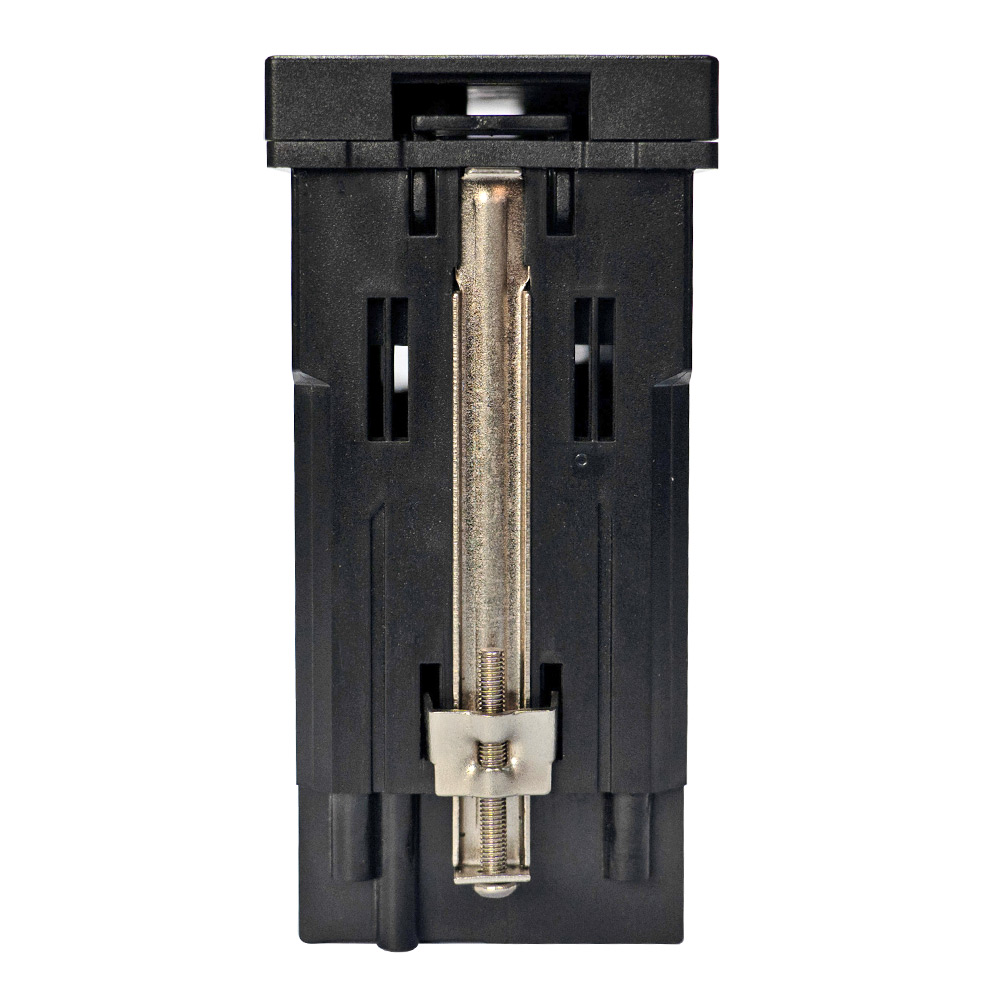

The High-Voltage Live Display Device LY-DXN-T stands as a critical line of defense in complex electrical infrastructure. Housed in a meticulously crafted, impact-resistant polymer casing, this device provides an immediate, unmistakable visual confirmation of high-voltage presence. When you approach a switchgear panel, the crisp, high-intensity illumination of the L1, L2, and L3 indicators cuts through the ambient lighting of industrial environments, delivering instant situational awareness. The tactile feedback of the integrated self-check button offers a reassuring mechanical click, allowing operators to verify system integrity before any maintenance protocol begins.
Beyond its robust physical construction, the LY-DXN-T is engineered to eliminate the guesswork inherent in high-voltage operations. By actively monitoring terminal voltages and engaging a forced locking relay the moment voltage exceeds 40% of the nominal threshold, it physically prevents unauthorized or accidental access to energized compartments. This seamless synergy of visual warning and mechanical lockout transforms passive safety compliance into an active, fail-safe barrier. Electrical engineers and facility managers can rely on its precision-engineered internal circuitry, which operates flawlessly without the need for intrusive partial discharge testing during installation. The result is a streamlined integration process, reduced operational downtime, and a profound sense of security for every technician operating on the facility floor.
Precision engineering requires absolute transparency in technical capabilities. The following specifications detail the exacting standards and operational thresholds of the LY-DXN-T model. Every parameter, from the broad 3 to 40.5kV rated voltage range to the strict adherence to IEC61958-2000 and DL/T538 standards, reflects our commitment as a premier manufacturer to deliver uncompromising quality. Whether deployed in scientific research facilities, educational demonstration setups, or heavy-duty industrial switchgear, these specifications ensure that procurement teams and engineering specifiers have the exact data required to validate system compatibility and safety compliance.
Parameter | Specification |
|---|---|
Product Model | LY-DXN-T |
Rated Voltage Range | 3~40.5kV |
Operating Frequency | 50Hz |
Voltage Indication Threshold | ≥ 40% of nominal voltage |
Indicator Configuration | L1, L2, L3 high-voltage presence indicators |
Core Functions | Self-check button function, Power test switch, Forced locking relay output |
Operating Temperature | -30°C ~ +40°C |
Operating Humidity | Daily average ≤95%, Monthly average ≤90% |
Execution Standards | IEC61958-2000, DL/T538, DL/T593, GB/T7354 |
External Device Connection | Supports connection to computers, cameras, multimedia players, etc. |
Applicable Scenarios | Scientific Research, Education, Industrial Testing, GIS combined electrical appliances, and switchgear |
The architectural design of the LY-DXN-T focuses on maximizing operational safety while minimizing the cognitive load on facility technicians. By integrating intuitive diagnostic controls directly into the front interface, this device empowers your maintenance teams to verify critical safety parameters instantly. The engineering behind these features ensures that every interaction is deliberate, secure, and highly responsive to the dynamic conditions of power distribution networks.
When the high voltage side is powered off and secondary working power is connected, depressing the self-check button instantly illuminates the L1, L2, and L3 indicators while disconnecting the locking relay output contacts. Releasing the button extinguishes the lights and closes the contacts, providing immediate verification of circuit health.
If the high voltage terminal voltage reaches or exceeds 40% of the nominal voltage, pressing the self-check button will keep the L1, L2, and L3 indicators illuminated and the locking relay disconnected, regardless of whether the secondary power is connected.
Designed for absolute clarity, pressing this switch when the high voltage side is de-energized ensures the phase indicators remain dark. Conversely, if the voltage is at or above the 40% threshold, the indicators must light up, offering an undeniable visual cue of energized states.
From facilitating accurate testing and analysis in industrial quality control settings to enhancing interactive classroom demonstrations with engaging visual presentations, the unit adapts seamlessly to diverse professional environments including dedicated scientific research facilities.
Procuring the right electrical safety infrastructure demands a holistic evaluation of performance, compliance, and long-term value. The LY-DXN-T is meticulously engineered across six critical dimensions to elevate your facility's operational integrity and protect your most valuable assets.
Equipped with a mandatory locking circuit output, the device physically severs the locking relay contacts the moment high-voltage terminals reach 40% of their rated capacity. This coordinates flawlessly with electromagnetic locks to create an impenetrable barrier against unauthorized access to energized bays, drastically reducing the risk of human error.
The integration of a one-touch self-check button and power test switch allows operators to validate the responsiveness of the phase indicators and locking relays in seconds. This proactive diagnostic capability significantly mitigates the risk of hidden faults, ensuring the device is always ready when it matters most.
Built to satisfy the most stringent procurement criteria, the unit fully complies with IEC61958-2000 international standards, alongside DL/T538, DL/T593, and GB/T7354 specifications. It is optimized for 50Hz, 3 to 40.5kV medium and high-voltage grids, making it a universally accepted solution for large-scale industrial projects.
Engineered to endure harsh operational climates, the internal components remain stable in extreme temperatures ranging from -30°C to +40°C and withstand daily average humidity levels up to 95%. With appropriate moisture and temperature safeguards, its deployment seamlessly extends from indoor switchgear to demanding outdoor high-voltage installations.
The architecture supports unparalleled connectivity. It interfaces smoothly with capacitive voltage dividers and sensors, while offering the unique ability to export visualization data to computers, cameras, and multimedia players. This scalability is invaluable for meticulous industrial testing, scientific data logging, and educational demonstrations.
Utilizing advanced non-contact induction technology, the device bypasses the need for disruptive partial discharge testing during installation. The extended lifecycle of its premium components guarantees low ongoing maintenance requirements, delivering a highly favorable return on investment for enterprise-level deployment.
Selecting a manufacturing partner for critical electrical safety components is a decision that impacts the entire lifecycle of your infrastructure. We distinguish ourselves by combining rigorous quality control with deep industry expertise, ensuring that every unit shipped meets the exacting demands of modern power systems. Our approach is centered on building resilient, long-term partnerships with procurement teams and engineering firms globally.
Direct Manufacturer Economics: By streamlining the supply chain, we provide premium-grade electrical safety devices at highly competitive price points, optimizing your project budgets without compromising on build quality or technological sophistication.
Uncompromising Quality Assurance: Every LY-DXN-T unit undergoes exhaustive stress testing in our advanced testing laboratories before deployment. From thermal cycling to high-voltage endurance tests, we guarantee flawless performance out of the box.
Dedicated Technical Support: Our relationship extends far beyond the initial transaction. We offer comprehensive warranty coverage and a dedicated team of engineering specialists ready to assist with integration queries, troubleshooting, and operational optimization.
Proven Global Track Record: Trusted by facility managers and safety auditors worldwide, our solutions are consistently chosen for high-stakes environments where reliability is not just desired, but absolutely mandated.
To assist your engineering and procurement departments in making an informed decision, we have compiled detailed responses to the most common technical inquiries regarding the LY-DXN-T high-voltage indicator system. Should your project require further clarification, our technical support team remains at your disposal.
Q1: Is the LY-DXN-T device suitable for outdoor use in harsh climates?
A: Yes, the device is engineered with robust environmental adaptability, functioning reliably in temperatures from -30°C to +40°C. While inherently durable, we recommend implementing proper enclosures and precautions to shield the unit from direct moisture ingress and extreme weather phenomena when deployed in outdoor high-voltage settings.
Q2: How does the forced locking relay integrate with existing switchgear safety protocols?
A: The locking relay is designed to output a disconnection signal the moment the terminal voltage reaches or exceeds 40% of the nominal voltage. This signal interfaces directly with electromagnetic locks on the switchgear doors, physically preventing operators from opening energized compartments and ensuring strict adherence to lockout/tagout (LOTO) safety procedures.
Q3: Can I connect external diagnostic devices to the LY-DXN-T display?
A: Absolutely. The device features versatile connectivity architecture that supports seamless integration with external hardware. Facility managers and researchers can connect computers, specialized cameras, and multimedia players to capture visualization data, which is highly beneficial for industrial auditing and scientific analysis.
Q4: Does the installation process require partial discharge testing?
A: No. Thanks to its advanced non-contact induction design, the LY-DXN-T eliminates the necessity for partial discharge testing during the installation phase. This significantly accelerates the deployment timeline and reduces the complexity of integrating the device into GIS combined electrical appliances and standard switchgear.
Q5: How does the warranty and support service work for enterprise deployments?
A: We provide a comprehensive, industry-leading warranty designed to protect your investment. Our dedicated support services include detailed product manuals, direct access to our technical engineering team for integration assistance, and expedited replacement protocols to ensure your facility maintains continuous safety compliance.
