How Does a Power Transformer Actually Work?

Reliable high-voltage power distribution hinges on the precise physics of electromagnetic induction. This fundamental reality makes the power transformer the most critical asset in an electrical grid or industrial facility. Specifying equipment based purely on kVA ratings without understanding internal mechanics frequently leads to over-specification, premature thermal degradation, or excessive lifecycle energy losses. Facility managers and electrical engineers must look beyond basic nameplate data. You need a comprehensive grasp of core construction, winding materials, and thermal dynamics to ensure grid stability.

By deconstructing the exact methods by which these systems operate, you can accurately evaluate technical specifications. Aligning cooling and insulation types with specific site requirements prevents catastrophic failures and optimizes capital expenditure. We will explore the internal physics, component-level engineering, and environmental factors dictating equipment selection. You will learn how to match phase configurations and cooling mediums to your exact load profile, enabling evidence-based procurement decisions.

• Physics Dictate Efficiency: A transformer’s ability to step voltage up or down relies on magnetic flux; the quality of the core material directly determines no-load (iron) losses and long-term operational costs.

• Environment Dictates Design: The choice between oil-immersed and dry-type insulation is driven by thermal management requirements, fire safety compliance, and indoor vs. outdoor installation constraints.

• Material Trade-offs Impact Lifecycle Costs: Winding material (copper vs. aluminum) and core construction (laminated steel vs. amorphous metal) require balancing upfront capital expenditure against long-term operational expenses over a 25-to-30-year lifecycle.

• Maintenance is Tied to Mechanics: Understanding internal stresses—such as inrush currents and dielectric breakdown—is essential for implementing predictive maintenance strategies like Dissolved Gas Analysis (DGA).

The Core Physics: The Means by Which Energy is Transferred

To evaluate efficiency, buyers must first understand how electrical energy transfers between circuits without a physical connection. Transformers operate strictly on the principles of electromagnetism. They do not generate power. They transfer it across varying voltage levels while maintaining the same frequency. This process requires precise control over magnetic fields.

Faraday’s Law of Induction

Alternating current (AC) flowing through the primary winding creates a time-varying magnetic field. This expanding and collapsing field intersects the secondary winding. According to Faraday’s Law of Induction, this changing magnetic environment induces a proportional electromotive force in the secondary circuit. The exact voltage transformation depends entirely on the turns ratio. If the secondary winding has fewer turns than the primary, voltage decreases. If it has more turns, voltage increases. Current scales inversely to maintain power equilibrium. When we measure voltage at the secondary terminals during site commissioning, we are directly observing this induction process in action.

Magnetic Flux and Core Saturation Limits

The magnetic core provides a low-reluctance path to confine and guide the magnetic flux. Without this core, flux would scatter, rendering the energy transfer highly inefficient. Engineers design cores to handle a specific maximum flux density. Exceeding the design voltage or dropping below the rated frequency pushes the core steel beyond its magnetic capacity. This condition is known as core saturation.

Once saturated, the core cannot contain additional flux. The excess magnetic energy spills into surrounding structural components. I have seen cores saturate on site due to severe overvoltage events, leading to immediate and severe harmonic distortion. This rapid overheating degrades the insulation paper and introduces catastrophic failure risks. Managing voltage levels prevents saturation and preserves equipment integrity.

Anatomy of a Power Transformer: Component-Level Evaluation

Mapping physical components to operational reliability helps engineers draft precise procurement specifications. Every internal part plays a distinct role in managing electrical stress, thermal output, and mechanical forces.

Core Construction: Laminated Steel vs. Amorphous

Core material dictates baseline efficiency. Cold-rolled grain-oriented (CRGO) silicon steel remains the industry standard. Manufacturers slice this steel into ultra-thin laminations. They coat each layer with an insulating varnish. This laminated structure restricts circulating eddy currents, minimizing heat generation. For applications demanding ultra-low no-load losses, amorphous metal cores provide an alternative. The rapid cooling process used to create amorphous metal prevents crystalline structures from forming. This random atomic arrangement drastically reduces magnetic friction. Amorphous cores excel in continuous-duty applications where minimizing idle energy waste is paramount.

Windings: Copper vs. Aluminum Trade-offs

Conductor material selection directly impacts physical size and mechanical resilience. Copper offers superior electrical conductivity. It generates less heat per unit of cross-sectional area. Copper also boasts higher tensile strength. This allows copper windings to better withstand the violent mechanical forces generated during severe short-circuit events.

Aluminum provides a different cost-to-performance ratio. It weighs significantly less than copper. However, aluminum requires a larger cross-sectional area to carry the same current. This necessitates a larger core and a bulkier tank. Engineers must evaluate physical footprint constraints against upfront material costs when laying out a substation pad.

Insulation and Dielectric Strength

High voltages constantly seek the path of least resistance to ground. Insulation prevents phase-to-phase and phase-to-ground electrical arcs. Internal insulation systems rely heavily on high-density cellulose paper wrapping the conductors. In liquid-filled units, dielectric fluids impregnate this paper. The combination of solid cellulose and liquid coolant creates a robust barrier against electrical stress. Moisture and oxygen degrade cellulose over time, reducing its degree of polymerization. Maintaining a sealed, dry environment inside the tank is non-negotiable for long-term dielectric integrity.

Bushings and Terminals

High-voltage current must safely enter and exit the grounded metal tank. Bushings facilitate this transfer without causing flashovers. Solid porcelain bushings serve lower voltage applications effectively. For high-voltage transmission, engineers specify condenser-type bushings. These feature alternating layers of conductive foil and insulating paper. This capacitive grading distributes electrical stress evenly along the length of the bushing. Proper bushing selection prevents localized electrical breakdown at the tank interface.

Field technicians follow strict procedures when inspecting bushings during annual maintenance:

1. Perform a visual inspection for porcelain cracks, oil leaks, or heavy pollution buildup.

2. Clean the external sheds with approved non-residue solvents to prevent surface tracking.

3. Conduct a power factor (dissipation factor) test to measure the internal insulation quality of the condenser layers.

4. Check the oil level in the bushing sight glass to ensure the internal capacitive core remains fully submerged.

5. Verify the tightness of the terminal connections using a calibrated torque wrench to prevent high-resistance heating.

Tap Changers: OLTC vs. OCTC

Grid voltages fluctuate based on regional demand. Tap changers actively accomplish voltage regulation by altering the number of active turns in the winding. Off-Circuit Tap Changers (OCTC) require complete electrical isolation before adjustment. Technicians use OCTCs to account for permanent shifts in baseline grid voltage. On-Load Tap Changers (OLTC) adjust voltage dynamically while the unit remains energized and under load. OLTCs utilize complex diverter switches and transition resistors to prevent circuit interruption during the tap change. This increases mechanical complexity and requires rigorous maintenance schedules.

Evaluating Transformer Types Based on Operating Principles

Categorizing equipment by phase configuration and cooling medium guides application-specific selection. Different environments demand distinct physical architectures to ensure safety and efficiency.

Three-Phase Oil-Immersed Distribution Transformer

Heavy industrial plants and utility substations require robust environmental protection and high overload capacity. The Three-Phase Oil-Immersed Distribution Transformer utilizes mineral oil or synthetic ester fluids. These liquids serve a dual purpose. They provide exceptional dielectric strength to prevent arcing. They also act as a highly efficient convective heat dissipation medium.

The oil circulates through the core and coils, absorbing heat, and transfers it to external radiators. This liquid cooling allows for higher power densities in a smaller footprint compared to air-cooled models. They dominate outdoor installations where weather exposure and heavy loads are standard. When installing these units, contractors must pour heavy-duty concrete pads and construct secondary containment moats to capture any potential fluid leaks.

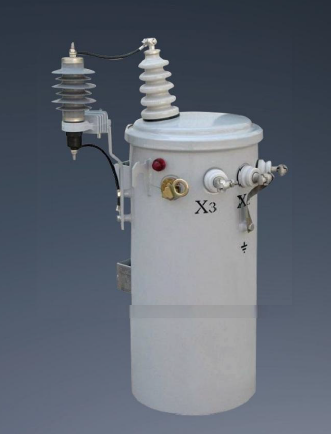

Single-Phase Oil-Immersed Distribution Transformer

Not all applications require three-phase power. Rural electrification projects and residential neighborhoods often rely on single-phase lines. The Single-Phase Oil-Immersed Distribution Transformer operates on a single alternating current cycle. It utilizes a simplified core-and-coil assembly submerged in a cylindrical oil tank.

These units mount easily on utility poles or concrete pads. They step down transmission voltages to safe household levels. They offer significant cost efficiency for light commercial loads where installing three-phase infrastructure proves cost-prohibitive. Field crews frequently install wildlife guards on the high-voltage bushings of these units to prevent squirrels or birds from causing phase-to-ground faults.

Three-Phase Dry-Type Distribution Transformer

Indoor commercial facilities, hospitals, and underground vaults face strict fire safety codes. Liquid coolants pose unacceptable flammability and leakage risks in these zones. The Three-Phase Dry-Type Distribution Transformer solves this problem. It relies entirely on air circulation for cooling.

Manufacturers encapsulate the windings in cast resin or utilize vacuum-pressure impregnated (VPI) varnishes. This solid insulation prevents moisture ingress and provides high mechanical strength. Because air dissipates heat less effectively than oil, dry-type units require larger internal clearances. This results in a larger physical footprint, but completely eliminates oil containment requirements and fire hazards. When rigging these into indoor electrical rooms, structural engineers must account for the increased physical dimensions and ensure adequate ventilation louvers are present in the room design.

Cooling Mechanisms and Thermal Management

Heat dissipation dictates load capacity, scalability, and environmental compliance. Electrical resistance in the windings generates significant heat. If this heat cannot escape, insulation degrades rapidly, cutting the equipment's lifespan short.

Cooling Classes: ONAN, ONAF, and Forced Dynamics

Engineers classify cooling methods based on the circulation of internal and external mediums. Oil Natural Air Natural (ONAN) relies entirely on passive thermodynamics. Hot oil rises, enters the radiators, cools, and sinks back to the bottom of the tank. Natural air currents carry the heat away from the radiator fins. This provides a baseline, maintenance-free cooling rating.

To increase capacity without building a larger tank, engineers utilize Oil Natural Air Forced (ONAF). This method adds thermostatically controlled fans to the radiators. The forced air accelerates heat dissipation, allowing the unit to carry higher loads safely. Adding fans or internal oil pumps increases the nameplate kVA rating. However, these active components introduce mechanical failure points. Pump or fan failures immediately reduce the unit back to its base ONAN rating, requiring load shedding to prevent thermal damage.

Environmental and Fire Safety Standards

Regulatory frameworks dictate cooling choices. IEEE and IEC standards strictly define acceptable temperature rise limits for specific insulation classes. Exceeding these limits voids warranties and accelerates cellulose aging. Oil-immersed units require secondary containment systems, such as concrete moats, to capture potential oil spills and protect local groundwater. In high-risk areas, engineers substitute standard mineral oil with high-fire-point synthetic esters. Dry-type units avoid liquid regulations entirely but must meet stringent non-flammable and self-extinguishing material requirements to ensure indoor safety.

Performance Metrics: Efficiency, Losses, and Financial Impact

Translating physical mechanics into financial metrics allows facility managers to evaluate long-term operational costs. Upfront purchase price represents only a fraction of the total financial commitment.

No-Load (Core) Losses vs. Load (Copper) Losses

Energy losses fall into two distinct categories. No-load losses, often called core or iron losses, occur the moment the unit is energized. These losses remain constant regardless of the electrical load connected to the secondary winding. They are driven entirely by the continuous magnetization and demagnetization of the core steel. Minimizing no-load losses requires high-grade CRGO steel or amorphous metal.

Load losses, or copper losses, occur in the windings. These scale with the square of the load current. As facility demand increases, the heat generated by conductor resistance increases exponentially. Evaluating lifecycle financial impact requires analyzing your specific facility load profile. A unit running constantly at 90% capacity justifies heavier investment in low-resistance copper windings. A unit idling at 20% capacity for most of the day demands investment in ultra-efficient core materials to mitigate constant no-load waste.

Impedance Voltage and Short-Circuit Withstand Capability

Percentage impedance dictates how the unit behaves under stress. It represents the voltage drop across the internal windings at full load. High impedance limits the massive fault currents generated during a downstream short circuit. This protects switchgear and breakers from explosive forces. However, high impedance also causes poor voltage regulation, leading to voltage sags when heavy motors start. Low impedance provides excellent voltage stability but allows massive fault currents to pass through. Engineers must strike a careful balance during the specification phase. You must ensure downstream equipment protection while maintaining stable voltage for sensitive facility loads.

Implementation Risks and Lifecycle Mitigation

Installing and operating heavy electrical infrastructure involves significant physical realities. Proactive mitigation strategies prevent nuisance outages and catastrophic equipment failure.

Inrush Current and Protection Relaying

Energizing a large magnetic core creates a violent transient event. When the breaker closes, the core requires an immediate, massive influx of magnetic flux to establish its baseline field. This magnetic inrush current can spike to ten times the normal full-load current for a few milliseconds. While harmless to the robust internal windings, this spike confuses standard protection relays. Relays interpret the inrush as a severe short circuit and trip the breaker. Engineers configure differential relays with harmonic restraint algorithms. These algorithms recognize the specific harmonic signature of inrush current, preventing nuisance tripping while maintaining active fault protection.

Predictive Maintenance and Diagnostics

Run-to-failure is not a viable strategy for high-voltage infrastructure. Predictive maintenance detects microscopic internal degradation before it escalates.

• Liquid-Filled Diagnostics: Oil-immersed units require routine Dissolved Gas Analysis (DGA). As internal faults occur, they generate heat, which breaks down the oil and paper. This breakdown releases specific combustible gases. High hydrogen indicates partial discharge or corona. Acetylene confirms active high-energy arcing. Ethylene points to severe thermal overloading. DGA provides a literal blood test for the equipment.

• Dry-Type Diagnostics: Without oil to sample, dry-type units rely on external sensors. Infrared thermography scans detect loose connections or blocked air channels causing localized hot spots. Partial discharge monitoring detects microscopic voids in the cast resin insulation. Identifying these voids early prevents sudden dielectric breakdown.

Conclusion

A power transformer functions as the beating heart of your electrical infrastructure. Its internal physics, material composition, and thermal dynamics directly dictate efficiency, safety, and suitability for specific industrial environments. Ignoring these mechanics leads to compromised grid stability and inflated operational costs. Selecting the right equipment requires a strict shortlisting logic. Define your facility load profile and maximum short-circuit requirements first. Select the phase configuration based on your network architecture. Determine the cooling medium based on installation location, environmental regulations, and fire safety codes.

Take the following steps to ensure a successful procurement cycle:

1. Conduct a comprehensive lifecycle financial analysis weighing continuous core and coil losses against upfront capital costs.

2. Consult with structural engineers regarding concrete pad footprint, containment moats, and heavy-haul weight limits.

3. Request and verify certified test reports (CTRs) from shortlisted manufacturers to confirm guaranteed loss values.

4. Implement a baseline DGA or thermography schedule immediately upon energization to establish a health benchmark.

FAQ

Q: What is the difference between a power transformer and a distribution transformer?

A: Power units are engineered for transmission networks and operate at maximum efficiency near 100% load. Distribution units step down voltage for end-users. They handle highly variable loads and prioritize lower no-load losses, as they frequently operate well below maximum capacity.

Q: How does a Three-Phase Dry-Type Distribution Transformer handle heat without oil?

A: It utilizes cast resin or vacuum-pressure impregnated (VPI) solid insulation combined with natural or forced air convection. Because air is a less efficient heat conductor than oil, these units require a larger physical footprint to maintain adequate internal air clearance.

Q: Why would a facility choose a Single-Phase Oil-Immersed Distribution Transformer over a three-phase unit?

A: They offer significant cost efficiency and simplify infrastructure for applications that strictly serve single-phase loads. They are the standard choice for residential neighborhoods, light commercial step-down applications, and rural electrification networks where three-phase lines are unavailable.

Q: What causes a power transformer to hum?

A: The humming sound is caused by magnetostriction. As alternating magnetic flux passes through the core, the microscopic magnetic domains in the steel continuously expand and contract. This rapid physical vibration generates the characteristic low-frequency hum.

Q: How do you determine the correct impedance for a power transformer?

A: Engineers calculate impedance by balancing voltage regulation needs against fault current limitations. You must reference IEEE/IEC standard impedance values based on your specific kVA rating and the short-circuit interrupt capacity of your downstream switchgear.

Q: What is the lifespan of a standard power transformer?

A: The expected design lifespan is typically 25 to 30 years. However, actual longevity is strictly governed by the operating temperatures of the internal insulation, the severity of the load profile, and adherence to predictive maintenance practices.
