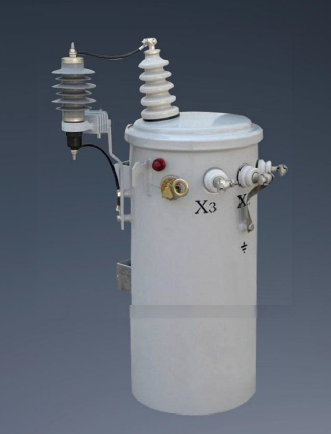

Single-Phase Oil-Immersed Distribution Transformer

This single-phase oil-immersed distribution transformer (model: D11-M(R)) has a rated capacity of 10-160kVA and high-voltage levels of 6kV/6.3kV/10kV. It features low line loss, compact design, and easy installation, specially developed for rural power grids, remote mountainous areas, and urban energy-saving transformation projects.

Quantity:
Availability:





Inquire Add to Basket

Low Line-Loss 1-Phase Tx Pole-Mounted Oil Tx Voltage-Adaptive Oil Tx Energy-Saving 1-Phase Tx Certified Single-Phase Tx

Product Advantage

Model description

Technical Parameters

Product Uses

FAQ

1. Ultra-Low Line Loss: Low-voltage design of 2×0.23kV reduces low-voltage current to 1/2 of ordinary transformers; line loss is 1/4 (P=I²R), saving 75% energy for long-distance power supply. Keywords: low line-loss single-phase transformer, energy-saving rural transformer

2. Flexible Installation: Can be mounted on platforms or utility poles, eliminating the need for large foundations, reducing installation costs by 40% and saving space. Keywords: pole-mounted transformer, space-saving oil-immersed equipment

3. High Material Quality: Core made of high-grade cold-rolled silicon steel sheets minimizes no-load loss (36W-232W); windings use oxygen-free copper for low resistance and stable conductivity. Keywords: cold-rolled silicon steel core, oxygen-free copper windings

4. Wide Voltage Adaptability: Supports high-voltage tap ranges of ±2×2.5%/±5%, adapting to voltage fluctuations in remote areas (10% voltage deviation acceptable). Keywords: voltage-adaptive transformer, remote area power supply

5. National Certification: Passed type tests by the National Transformer Quality Supervision and Testing Center, ensuring compliance with GB/T 6451-2015 standards. Keywords: certified single-phase transformer, GB/T 6451 compliance

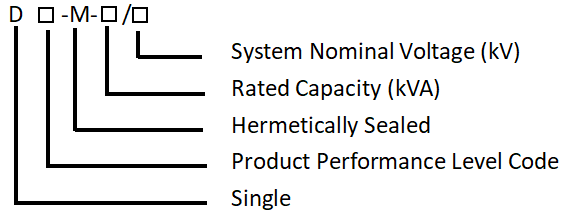

单相型号描述

Rated Capacity （kVA）	Voltage Combinations			Connection Group Designator	No-load Loss（W）	Load Loss(75℃，W)	No-load Current(%)	Impedance Voltage (%)
Rated Capacity （kVA）	High Voltage(kV)	Tap Range	Low Voltage(kV)	Connection Group Designator	No-load Loss（W）	Load Loss(75℃，W)	No-load Current(%)	Impedance Voltage (%)
10	6 6.3 10 10.5 11	±2*2.5 ±5	2* （0.22~0.24）	lio li6	36	212	1.10	3
16					44	297	1
20					52	346	0.9
30					64	504	0.8
40					80	630	0.8	3.5
50					96	769	0.70
63					116	918	0.6
80					128	1130	0.6
100					152	1340	0.6
125					184	1580	0.5
160					232	1920	0.5

Note: Due to the continuous update of the product, there will be some changes in the dimensions and weight ofthe product in the table, please refer to the appearance and size drawings provided at the time of ordering.

1. Rural Agricultural Production: Powers irrigation pumps, grain drying equipment, and greenhouses, with low line loss adapting to long-distance rural power lines.

2. Remote Mountainous Area Lighting: Supplies electricity to mountain villages and border posts, supporting pole-mounted installation in rugged terrain.

3. Urban Grid Energy-Saving Transformation: Replaces old transformers in residential communities, reducing line loss and improving power supply stability for households.

4. Small-Scale Commercial Use: Powers convenience stores, rural clinics, and small workshops, with compact design fitting limited installation space.

1. Q: Why is the low-voltage 2×0.23kV instead of 0.4kV?

A: 2×0.23kV reduces current by half, cutting line loss to 1/4—ideal for long-distance power supply in rural areas.

2. Q: Can it be used in areas with frequent voltage fluctuations?

A: Yes, the ±2×2.5% tap range adjusts voltage to stabilize output, adapting to ±10% fluctuations.

3. Q: What is the service life of this transformer?

A: Under normal maintenance, the service life is 15-20 years, with the oil tank and windings having anti-corrosion treatment.

Related Products

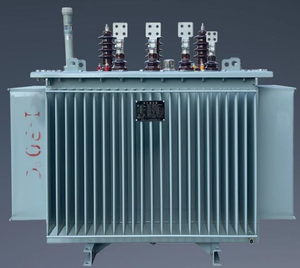

Three-Phase Oil-Immersed Distribution Transformer
