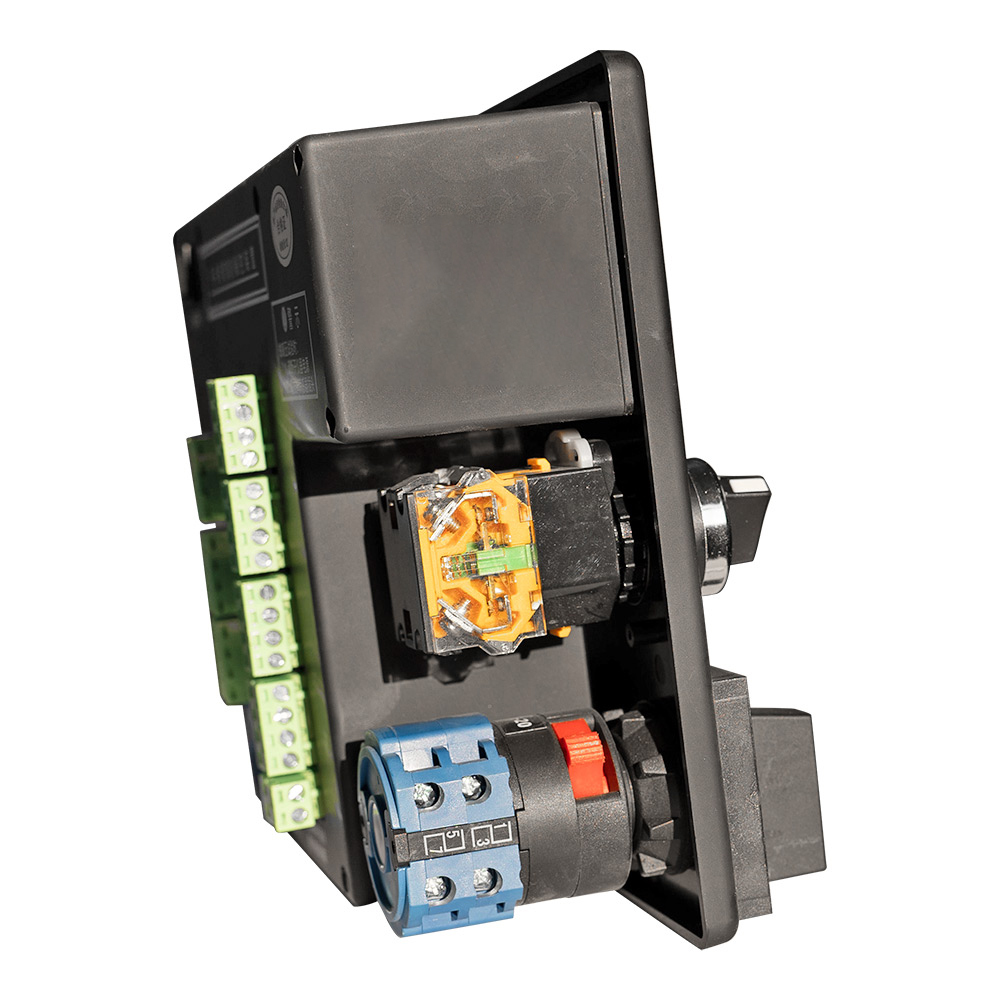

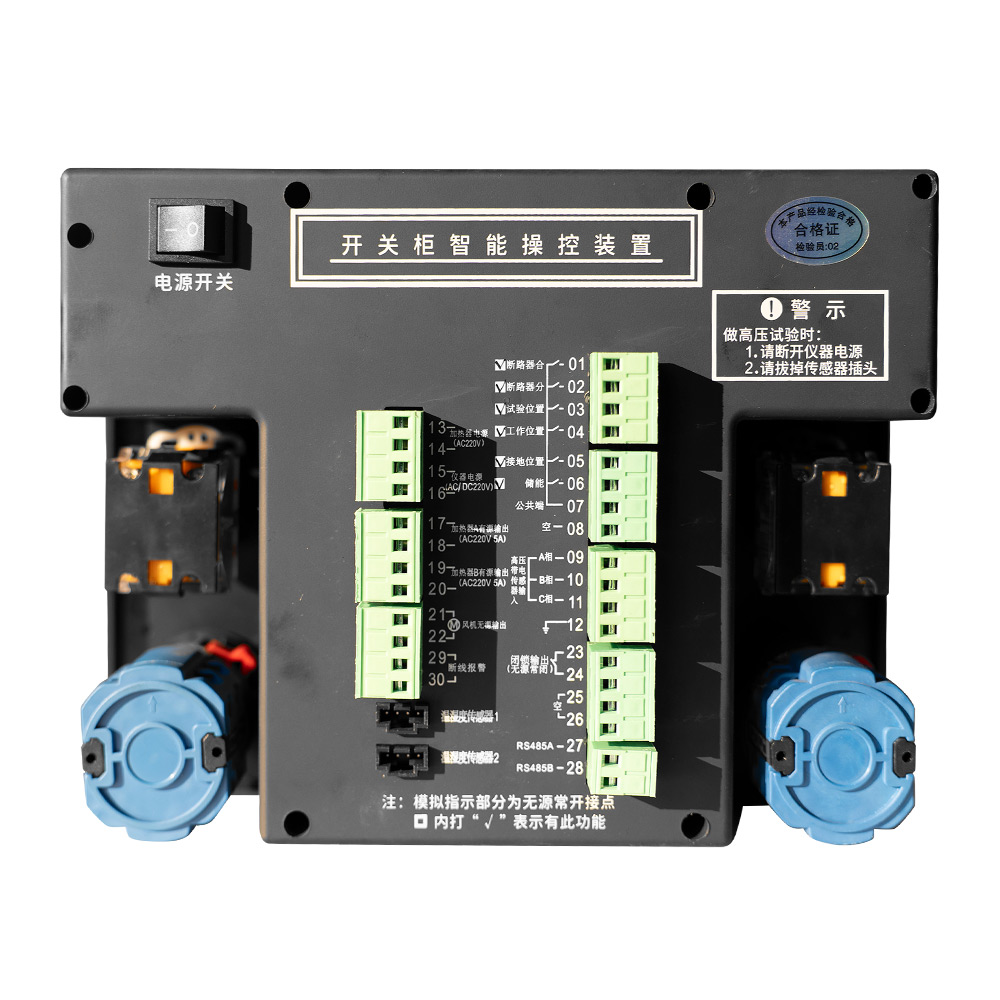

Intelligent Switchgear Control Device with RS485 Interface

The LY-9906 Intelligent Switchgear Control Device fundamentally redefines how facility managers and electrical engineers interact with 3-35kV indoor switchgear systems. When you approach the cabinet, the crisp, backlit LCD screen instantly illuminates, offering a clear, high-contrast visual representation of your entire circuit grid. The tactile feedback of the integrated circuit breaker buttons provides a reassuring, mechanical click, confirming every operational command with absolute precision. By consolidating live display panels, automatic heating and dehumidification controllers, and intricate breaker status indicators into a single, meticulously crafted housing, this device completely eliminates the chaotic web of wiring that typically plagues traditional setups.

Beyond its sleek, industrial-grade polymer exterior, the device acts as the vigilant brain of your electrical infrastructure. It continuously monitors the subtle thermal shifts at cable lap joints using advanced wireless RF technology, detecting the faintest scent of overheating electrical insulation long before a critical failure occurs. The auditory alerts are sharp and commanding, cutting through the ambient hum of a busy server room or manufacturing plant to prevent operational errors. This is not merely a monitoring tool; it is a comprehensive asset management solution that drastically reduces assembly time, mitigates the risk of catastrophic electrical faults, and extends the operational lifespan of your high-value switchgear equipment.

Product Specifications

Selection table

Key Features & Highlights

Equipping your infrastructure with the LY-9906 means investing in a proactive defense mechanism for your power distribution network. This unit transforms passive cabinets into highly responsive, intelligent nodes that actively protect both your personnel and your operational bottom line.

• Comprehensive Status Visualization: Instantly verify circuit breaker opening and closing statuses, energy storage levels, and grounding switch positions through a highly intuitive dynamic simulation diagram.

• Automated Climate Regulation: The built-in automatic temperature and humidity control actively combats moisture buildup, preventing condensation that could lead to devastating short circuits.

• Advanced RF Thermal Monitoring: Utilizing wireless RF technology, the system captures real-time temperature data from critical contact points, triggering immediate alarms if thermal thresholds are breached.

• Vocal Error Prevention: An intelligent voice prompt system acts as a secondary safety layer, delivering clear auditory warnings to operators to prevent hazardous missteps during routine maintenance.

• Proximity Sensing Technology: Integrated human body induction automatically activates cabinet lighting and screen displays the moment an engineer approaches, streamlining inspection workflows.

Core Advantages & Industry Applications

The LY-9906 is engineered to address the most pressing challenges in modern electrical distribution, offering unparalleled value through technological innovation and robust design.

High Integration & Cost Efficiency

By perfectly replacing the primary loop simulation board of legacy switchgear, this device acts as a master consolidator. It merges dynamic simulation diagrams, live displays, automated climate control, and breaker operations into one unified terminal. This drastic reduction in panel complexity means less wiring, fewer cutouts, and a significantly lower overall material cost for procurement teams and assembly lines.

• Slashes assembly hours by minimizing complex wiring harnesses inside the cabinet.

• Reduces the need to source multiple disparate components from different vendors.

• Optimizes panel space, allowing for more compact and aesthetically pleasing cabinet designs.

Ultimate Safety & Error Prevention

Addressing the critical pain points of power maintenance, the LY-9906 establishes an impenetrable safety net. It combines intelligent voice anti-error prompts with three-phase high-voltage live indications and mandatory blocking controls. When paired with high-temperature alarms at cable lap joints, it provides a full spectrum of protection—from physical isolation to audio-visual pre-warnings.

• Guards personnel against accidental contact with live high-voltage components.

• Prevents severe equipment damage caused by incorrect switching sequences.

• Delivers unmistakable voice commands that cut through heavy industrial noise.

IIoT & Predictive Maintenance

Aligning with Industry 4.0 standards, the integrated RS485 communication interface and advanced wireless RF temperature measurement (supporting 3, 6, or 9 points) enable continuous 24/7 data acquisition. Facility managers can monitor real-time health metrics, shifting their strategy from reactive troubleshooting to proactive predictive maintenance.

• Identifies thermal anomalies weeks before they result in hardware failure.

• Seamlessly feeds critical operational data into centralized facility management dashboards.

• Eliminates the astronomical costs associated with unplanned operational downtime.

High Reliability in Harsh Environments

Industrial environments are unforgiving, but the LY-9906 is built to endure. It boasts exceptional electromagnetic interference resistance, complying strictly with the GB/T17626.8-1998 standard. With a dielectric strength exceeding AC2000V and the ability to withstand significant seismic vibrations, it remains steadfast in the most demanding conditions.

• Maintains flawless operation in extreme temperatures ranging from -20℃ to 60℃.

• Operates with an ultra-low power consumption of just 3W, reducing thermal stress on internal electronics.

• Ruggedized casing protects sensitive microprocessors from industrial vibrations and shocks.

Intelligent Human-Machine Interaction

The user experience is elevated through smart proximity sensing. As maintenance personnel approach the cabinet, the built-in human body induction probe instantly wakes the high-resolution LCD screen and illuminates the cabinet interior. This seamless interaction provides immediate access to critical circuit parameters, breaker statuses, and energy storage indications.

• Drastically speeds up routine inspection rounds and diagnostic checks.

• Reduces energy waste by keeping screens and lights off when the area is unoccupied.

• Presents complex electrical data in a visually digestible, high-contrast format.

Wide Industry Compatibility

Featuring a standardized architectural design, this control device integrates effortlessly into a vast array of existing control systems. Whether you are upgrading a legacy manufacturing plant or outfitting a state-of-the-art facility, the LY-9906 adapts to your specific infrastructural needs.

• Perfect for modern industrial automation and robotics power management.

• Enhances Building Management Systems (BMS) in large commercial complexes.

• Ensures grid stability for renewable energy integrations and high-tier data centers.

Why Choose Us

Selecting the right manufacturing partner for your electrical infrastructure is just as critical as the hardware itself. We bring decades of specialized engineering expertise to the table, ensuring that every control device rolling off our production line meets the highest global standards for safety, durability, and performance.

• Uncompromising Quality Control: Every unit undergoes rigorous dielectric, thermal, and seismic testing before dispatch, guaranteeing zero defects upon arrival at your facility.

• Scalable Production Capacity: Our advanced manufacturing facilities are fully equipped to handle massive volume orders without sacrificing precision or extending lead times.

• Dedicated Technical Support: We provide comprehensive integration guidance, ensuring your engineering teams can deploy our devices swiftly and effectively.

• Continuous Innovation: We heavily reinvest in R&D to keep our products at the forefront of IIoT and smart grid technologies, future-proofing your investments.

Frequently Asked Questions (FAQ)

Below are detailed answers to common technical inquiries regarding the deployment, integration, and capabilities of the LY-9906 control device.

• Q1: How does the wireless RF temperature measurement function operate within a shielded switchgear cabinet?
  A: The device utilizes high-penetration radio frequency technology specifically calibrated to transmit stable thermal data through metallic enclosures. The sensors are attached directly to the busbars or contact lap joints (available in 3, 6, or 9-point configurations), transmitting real-time temperature metrics to the main LCD display without the need for vulnerable physical wiring.

• Q2: Can the LY-9906 interface seamlessly with our existing SCADA or Building Management System (BMS)?
  A: Absolutely. The unit is equipped with a standard RS485 communication interface operating at a 9600 baud rate. This allows for effortless integration into broader SCADA systems, enabling centralized remote monitoring, data logging, and predictive maintenance analytics across your entire facility.

• Q3: What specific measures does the device take to prevent condensation and moisture-related short circuits?
  A: The device features an intelligent automatic temperature and humidity control system. It continuously samples the ambient air inside the cabinet (ranging from 0℃ to 99℃). If humidity levels approach the dew point, it automatically triggers the cabinet's heating elements to dissipate moisture, thereby preventing condensation and preserving insulation integrity.

• Q4: How does the voice anti-error prompt system enhance operational safety during maintenance?
  A: The system uses built-in logic to monitor the sequence of breaker operations and grounding switch statuses. If an operator attempts an unsafe action—such as engaging a grounding switch while the circuit is live—the device will immediately issue a loud, clear voice warning and initiate blocking controls to physically prevent the hazardous operation.

• Q5: What is the expected lifespan and maintenance requirement for the LY-9906 in a heavy industrial setting?
  A: Designed for extreme durability, the LY-9906 requires minimal physical maintenance. Its robust polymer shell, combined with an ultra-low power consumption of just 3W, minimizes internal heat generation. Routine maintenance is generally limited to periodic software diagnostics and visual inspections, ensuring reliable performance over a long lifecycle even in environments with high electromagnetic interference and vibrations.
