Intelligent Control Device for Switchgear with RS485 Interface

The LY-9901 Intelligent Control Device represents a paradigm shift in electrical cabinet management, transforming standard switchgear into highly responsive, intelligent nodes within modern power grids. Crafted with a robust, industrial-grade polymer housing, the device offers a premium tactile feel while ensuring maximum durability against harsh environmental stressors. Upon interacting with the control panel, operators are greeted by a crystal-clear digital tube display that cuts through the dim lighting typical of substation environments, delivering critical temperature and humidity metrics with absolute visual precision. The meticulously engineered interface provides instant, intuitive feedback, emitting clear voice prompts that guide operators safely through complex switching sequences.

Beyond its striking visual and tactile craftsmanship, this control unit is designed to solve the most pressing challenges faced by facility operators: minimizing human error and preventing catastrophic equipment failures. By continuously monitoring the exact position of the switch—whether in the test position, working position, or completely withdrawn—it eliminates the guesswork that often leads to operational hazards. The internal circuitry, built with meticulously selected industrial-grade electronic components, operates silently and flawlessly, ensuring that every command is executed with zero latency. This device is not merely a monitoring tool; it is a comprehensive safeguard that enhances the operational lifespan of your critical electrical infrastructure, providing unparalleled peace of mind for engineering teams.

Product Specifications

The following tables detail the precise technical parameters and functional configurations of the LY-9901 model, ensuring complete transparency and exact matching for your project engineering requirements.

Note：●：standard equipment ⭕：optional ×：not have

Key Features & Highlights

Engineered to exceed standard operational demands, this control device integrates multiple advanced functionalities to optimize switchgear performance and aggressively safeguard your high-value electrical assets.

• High Intelligence Status Detection: It goes far beyond basic open/close status indication. The system precisely judges whether the switch is located between the test position and the working position, or if it is entirely outside the cabinet, providing operators with unparalleled, real-time situational awareness.

• Advanced Alarm Systems: Equipped with a highly responsive heating load disconnection alarm function, it immediately alerts maintenance teams to thermal management failures. This rapid notification prevents condensation buildup and subsequent catastrophic insulation breakdowns.

• Dual-Environment Monitoring: Utilizing a high-visibility digital temperature display, the unit simultaneously tracks the thermal conditions of two distinct environments. This ensures optimal operating climates are maintained for all sensitive internal components, regardless of external weather fluctuations.

• Uncompromising Reliability: Constructed exclusively with premium industrial-grade electronic components, the device is built to withstand continuous, rigorous operation in demanding environments without any degradation in its processing speed or accuracy.

Intelligent Monitoring & Core Functions

Achieving total visibility over switchgear operations is critical for maintaining grid stability and preventing downtime. This device provides an exceptional level of monitoring depth, tailored specifically for complex electrical architectures.

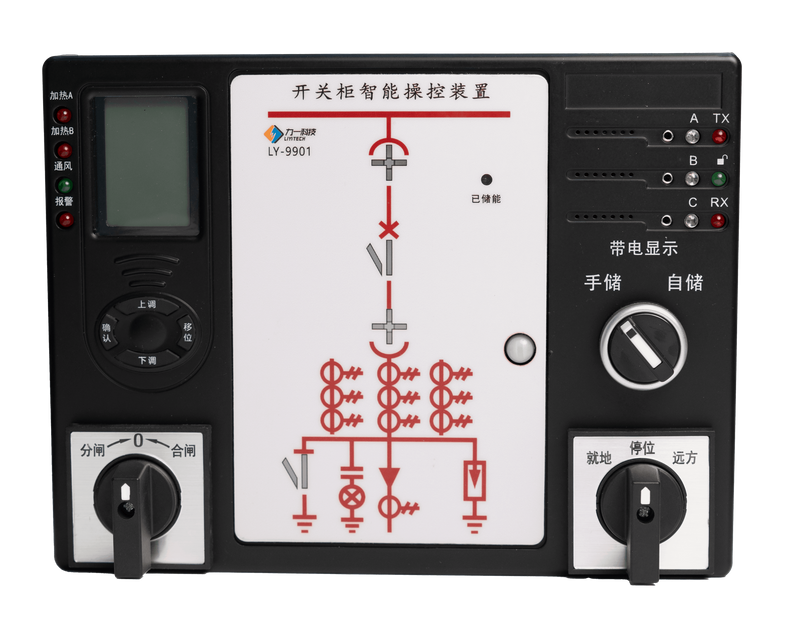

• Dynamic Simulation Diagram: The front panel features a highly intuitive dynamic simulation diagram that maps the real-time electrical state of the cabinet. This visual representation allows operators to instantly comprehend the current circuit configuration without deciphering complex numerical codes.

• Precision Switch Positioning: By utilizing advanced sensor logic, the device accurately identifies the exact physical position of the switch mechanism. This capability is crucial for verifying that maintenance procedures can commence safely or that the system is fully engaged for active duty.

• Simultaneous Dual-Zone Display: The integrated digital tube display continuously streams temperature and humidity data from two separate zones within the cabinet. This dual-monitoring approach ensures that localized hot spots or moisture accumulations are detected long before they can compromise the equipment's structural integrity.

Safety Protection & Error Prevention

Protecting human life and preventing costly equipment damage are the highest priorities in any electrical facility. This control unit is meticulously programmed to act as an uncompromising guardian against operational errors, significantly reducing the risk of human-induced faults.

• Anti-Fault Voice Prompting: In the high-stakes, noisy environment of a substation, visual cues alone are not always sufficient. The device features an authoritative voice prompting system that actively guides operators, instantly calling out incorrect procedural steps to halt potential accidents before they occur.

• Charged Display and Mandatory Blocking: When the system detects a live high-voltage presence, it automatically triggers a clear visual warning and engages a mandatory mechanical and electrical blocking mechanism. This strictly prevents any unauthorized or accidental access to energized compartments.

• Energized Voice Warning: Supplementing the physical blocking mechanism, a distinct, loud voice warning is broadcasted if an operator attempts to interact with a charged section of the cabinet, providing a critical secondary layer of auditory defense to ensure absolute personnel safety.

System Integration & Communication

Modern electrical infrastructure relies heavily on interconnected data networks for automated control. This device is designed to serve as a seamless, high-speed data node within your broader facility management architecture.

• Robust RS485 Interface: The unit is equipped with a highly stable RS485 communication interface operating at a reliable 9600 baud rate. This industry-standard connection ensures zero-packet-loss data transmission across the long cable runs typically found in large-scale facilities.

• Microcomputer Error Prevention Networking: By leveraging the RS485 connection, the device effortlessly integrates with other substation equipment. This allows facility managers to construct a comprehensive, real-display microcomputer error prevention monitoring system that oversees the entire site from a single control room.

• SCADA Compatibility: The standardized communication protocol guarantees smooth interoperability with existing SCADA (Supervisory Control and Data Acquisition) systems. This enables remote diagnostics, centralized data logging, and automated grid management without the need to invest in costly, proprietary translation gateways.

Industrial Quality & Anti-interference Design

Electrical substations are inherently hostile environments, saturated with severe electromagnetic noise and constant physical vibrations. This device is fortified from the inside out to thrive precisely in these challenging conditions.

• Exceptional Dielectric Strength: Engineered with superior insulating materials, the unit boasts a dielectric strength exceeding AC2000V between the shell and terminals. This guarantees that unexpected high-voltage surges cannot breach the sensitive internal control circuitry.

• Advanced Anti-Interference Technology: Complying strictly with the rigorous GB/T17626.8-1998 standard, the device employs unique shielding and filtering technologies. This ensures that its microprocessors remain entirely unaffected by the intense magnetic fields generated by adjacent high-voltage busbars.

• Seismic and Vibration Resilience: The internal architecture is securely anchored to withstand continuous mechanical stress, boasting an impressive earthquake resistance rating of 10~55 10Hz 2g for 1 minute. This makes it highly suitable for installations in heavy industrial plants, mining operations, or seismically active regions.

Adaptability & Application Scenarios

Versatility in deployment is a key factor for large-scale procurement projects. This intelligent control device is engineered with universal compatibility in mind, drastically simplifying your inventory management and specification processes.

• Broad Voltage Spectrum: Specifically designed and developed for the 3~35kV range, the unit is perfectly calibrated to manage the operational demands of medium-to-high voltage indoor environments, making it a standard, go-to solution across various power grid sectors.

• Universal Cabinet Compatibility: Whether you are outfitting a brand-new facility or retrofitting legacy infrastructure, this device integrates flawlessly. It is fully suitable for a diverse array of switchgear architectures, including metal-clad switchgear, withdrawable switchgear, fixed switchgear, and ring main units (RMU).

• Flexible Power Supply Options: Accommodating different facility standards, the device offers user-selectable power supply configurations. It supports both AC220V±10% (50Hz) and DC220V/DC110V inputs, ensuring it can be powered directly from existing station battery banks or auxiliary AC supplies.

Flexible Selection & Customization

Recognizing that no two electrical projects have identical technical requirements or budget constraints, we offer a highly flexible approach to device configuration, ensuring you only invest in the exact features your infrastructure demands.

• Tailored Feature Sets: Through our comprehensive selection matrix, clients can precisely specify their required functionalities. While dynamic simulation, voice prompting, and charged displays come as standard equipment, advanced features can be added modularly to fit specific project scopes.

• Optional Upgrades: For projects requiring deep network integration or enhanced manual safety checks, the RS485 communication interface and the dedicated power check function are available as optional integrations, easily added during the manufacturing phase to meet stringent tender requirements.

• Customizable Parameter Settings: Beyond hardware selection, the device's firmware offers immense flexibility. Operators can easily tailor temperature control thresholds (ranging from 0℃ to 99℃) and alarm triggers to match the specific climatic challenges of their geographic location, enhancing overall adaptability.

Maintenance & Technical Support

Long-term operational efficiency relies not just on the hardware itself, but on the ecosystem of support surrounding it. We are committed to ensuring your systems run flawlessly throughout their entire intended lifecycle.

• Ultra-Low Maintenance Architecture: Thanks to the utilization of premium industrial-grade components and a tightly sealed, dust-resistant housing, the device requires minimal physical maintenance. Routine visual inspections and periodic software updates are generally all that is needed to maintain optimal performance.

• Comprehensive Expert Assistance: Our dedicated engineering team provides robust technical support tailored to complex installations. From initial wiring configuration and SCADA integration troubleshooting to post-installation optimization, expert guidance is always accessible to your field technicians.

• Reduced Total Cost of Ownership: By combining an exceptionally low power consumption profile (≤ 3W) with a durable, fault-resistant design, the device significantly reduces both energy overhead and replacement costs, delivering exceptional long-term financial value for large-scale deployments.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right equipment. Our unwavering commitment to engineering excellence and client success sets us apart in the highly competitive global electrical infrastructure sector.

• Unmatched Manufacturing Expertise: With years of dedicated focus on intelligent switchgear solutions, we possess the deep domain knowledge required to engineer products that truly solve the complex challenges of modern power distribution and grid management.

• Rigorous Quality Assurance: Every single unit undergoes an exhaustive series of stress tests—including high-voltage dielectric testing, prolonged thermal cycling, and rigorous vibration assessments—before it ever leaves our facility, guaranteeing out-of-the-box perfection.

• Client-Centric Innovation: We continuously refine our product lines based on direct feedback from field engineers and facility operators. This ensures our technology remains at the cutting edge, providing you with solutions that are not only reliable today but are fully prepared for the smart grids of tomorrow.

Frequently Asked Questions (FAQs)

• Q: Can the LY-9901 device be seamlessly integrated with our existing SCADA control systems?
  A: Absolutely. The LY-9901 is optionally equipped with an RS485 communication interface operating at a 9600 baud rate. This standardized protocol ensures seamless integration and interoperability with various existing SCADA and microcomputer monitoring systems, allowing for centralized data collection and remote management.

• Q: What specific types of switchgear is this intelligent control device compatible with?
  A: The device is engineered for high adaptability across 3~35kV indoor switch cabinets. It is fully compatible with a wide variety of architectures, including metal-clad switchgear, withdrawable switchgear, fixed switchgear, and Ring Main Units (RMU), making it a highly versatile choice for diverse facility upgrades.

• Q: How does the device handle severe electromagnetic interference typical in high-voltage substations?
  A: The LY-9901 adopts unique, advanced anti-interference technology and strictly complies with the GB/T17626.8-1998 standard. Coupled with a dielectric strength exceeding AC2000V, it guarantees stable, error-free operation even in environments with intense electromagnetic noise and high-voltage proximity.

• Q: What is the maintenance schedule required to keep the device operating at peak performance?
  A: Designed with premium industrial-grade electronic components, the device requires exceptionally minimal maintenance. We recommend standard periodic visual checks of the terminal connections and occasional software updates. Its robust build quality ensures long-term reliability without the need for frequent component replacements.

• Q: Does the device provide localized alerts for environmental hazards inside the cabinet?
  A: Yes, it features a dual-environment digital temperature display and a highly sensitive heating load disconnection alarm function. If the internal climate deviates from the customized settings (control range 0℃~99℃), or if the heating element fails, the system immediately triggers an alert to prevent condensation and protect the insulation integrity.
