Upgrading industrial Electricity Metering goes beyond replacing legacy single-parameter panels. It dictates the accuracy of energy billing and the reliability of facility management systems. Modern facilities demand precise oversight of their energy consumption to remain profitable.

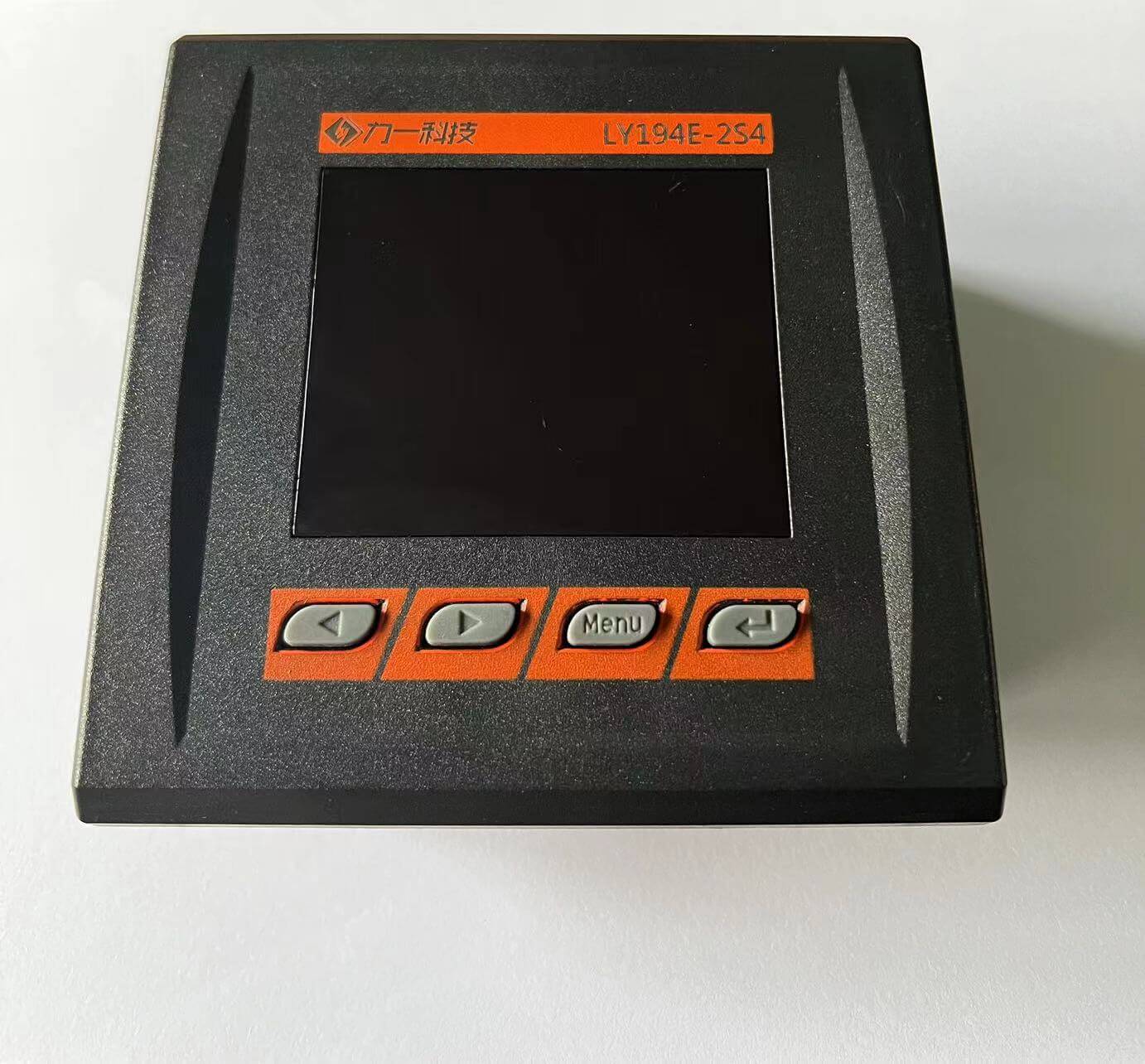

Selecting the wrong Multi-function Meter leads to protocol lock-in, data drift, and inadequate harmonic monitoring in complex electrical environments. You risk isolating critical power data if your hardware cannot communicate with existing infrastructure. Furthermore, poor accuracy classes cost businesses thousands in unnoticed billing discrepancies every year.
Our objective is to provide a transparent, specification-driven framework for evaluating, shortlisting, and procuring commercial and industrial meters. You will learn how to match technical specifications directly to business outcomes without over-specifying or under-equipping. This guide equips you to make confident, future-proof procurement decisions for your facility.
Match the accuracy class (e.g., Class 0.2S vs. 0.5S) directly to the financial stakes of your energy billing and custody transfer requirements.
Prioritize open communication protocols (Modbus TCP/IP, BACnet) to ensure seamless SCADA/BMS integration and avoid proprietary gateway lock-in.
True-RMS measurement is non-negotiable for facilities operating non-linear loads like VFDs, HVACs, and industrial motors.
Total Cost of Ownership (TCO) hinges on calibration stability; factor in data drift and recalibration cycles, not just the upfront hardware cost.
Facility managers often purchase meters based on immediate technical needs. However, the best procurement decisions align hardware capabilities directly with long-term business goals. You must evaluate what you truly need the device to achieve.
Differentiating between basic electrical parameters and advanced diagnostics is your first step. Basic meters measure voltage (V), current (I), and active power (kW). They suit simple sub-panels well. However, modern facilities often require power quality analysis. Advanced meters track Total Harmonic Distortion (THD), perform demand measurement, and execute load profiling.
We recommend using a feature comparison matrix to evaluate your needs. Below is a simple evaluation chart to guide your decision:
Feature Tier | Measured Parameters | Best Application Scenario | Cost Impact |
|---|---|---|---|
Baseline Monitoring | V, I, kW, kWh, PF | General factory floors, basic internal load balancing. | Low Initial Cost |
Power Quality Analysis | THD, Harmonics up to 31st/63rd, Sags/Swells | Facilities with heavy VFDs, HVACs, and non-linear loads. | Medium to High Initial Cost |
Utility-Grade Billing | High-accuracy TOU, Bi-directional flow, Custody Transfer | Tenant sub-metering, renewable energy grid integration. | High Cost, High ROI |
Equitable cost allocation is critical in commercial real estate. You cannot rely on rough estimates to bill tenants. Time-of-use (TOU) tariffs dictate that energy costs fluctuate based on the hour. Precision accuracy ensures you capture these shifts flawlessly. Accurate sub-metering protects landlord margins and ensures tenants only pay for what they consume.
Solar arrays and wind turbines change how industrial grids operate. They introduce bi-directional energy flow. Your meter must handle energy pulled from the utility and energy fed back into the grid. Bi-directional electricity metering ensures you capture grid-feeding credits accurately. It also plays a massive role in tracking demand-side response initiatives.
Do not buy features you will never use. Instead, map the device's feature set strictly to your current KPIs and your 5-year facility expansion roadmap.
Identify your top three energy management KPIs today.
Forecast planned equipment additions (e.g., new heavy machinery, solar panels) over the next five years.
Filter out meter models lacking the necessary diagnostic tools for those future additions.
Understanding the hardware specifications separates a functional purchase from a costly mistake. Let us demystify the core technical parameters.
Accuracy classes define the maximum percentage of error a meter will report. The practical differences between Class 1.0 and Class 0.2S are vast over a long-term operational cycle.
Class 1.0 allows a 1% error margin. It works perfectly for general internal monitoring. Conversely, Class 0.2S (defined by IEC 62053-22) allows only a 0.2% error margin. You need Class 0.2S for utility-grade billing and custody transfer. A 1% error on a massive industrial power bill costs thousands of dollars annually. Investing in 0.2S accuracy pays for itself through precise billing.
Standard meters assume your electrical current flows in a perfect sine wave. Modern industrial environments rarely offer perfect waves. Non-linear loads distort the waveform severely. Examples include Variable Frequency Drives (VFDs), LED lighting drivers, and heavy industrial motors.
Standard meters fail in these environments because they calculate incorrect heating values. True-RMS is non-negotiable here. True-RMS accurately captures complex, non-sinusoidal waveforms. It gives you the true effective heating value of the current.
Industrial panels process massive voltages and currents. A meter cannot handle these directly. We use Current Transformers (CT) and Potential Transformers (PT) to scale signals down safely.
Your meter must support programmable CT and PT ratios. If your facility upgrades a transformer from 400A to 800A, you should not have to replace the core meter. Programmable ratios let you update the scaling logic via the meter's interface.
Common Mistake: Mismatched CT/PT ratios during setup cause more inaccurate readings than hardware failures. Always verify the physical transformer ratios match the meter's digital settings.
Do not underestimate the screen. High-count displays, such as a 6000-count screen, provide superior resolution. They allow you to detect micro-fluctuations in power delivery. Refresh rates matter just as much. A sluggish refresh rate will miss rapid voltage sags. You need responsive displays to monitor dynamic industrial processes effectively.
A meter is only as valuable as the data it shares. Isolated data creates blind spots for facility managers.
The danger of proprietary protocols is immense. Some manufacturers design meters that only communicate with their own branded gateways. This practice traps you into buying their expensive software forever.
You must prioritize open communication. Native support for Modbus RTU, Modbus TCP/IP, or Profibus is critical. These protocols guarantee independent SCADA and BMS architectures. BACnet is equally crucial for commercial building management. Open protocols allow you to mix and match the best hardware across your facility.
Modern edge-computing demands robust connectivity. Assessing Ethernet, 4G/LTE, and Wi-Fi capabilities is a mandatory procurement step.
Ethernet: Provides the most stable, high-bandwidth connection for central dashboarding.
4G/LTE: Ideal for remote pumping stations or off-grid solar arrays lacking local networks.
Wi-Fi: Useful for retrofitting older buildings where pulling new Ethernet cables proves too costly.
Ask yourself: Can this device act as a reliable network node as the facility expands? Evaluate the manufacturer's firmware update commitments. Cybersecurity standards evolve rapidly. An IoT-connected meter without regular security patches becomes a vulnerability. Look for vendors offering verifiable update lifecycles and robust encryption standards.
Industrial environments destroy fragile equipment. Safety and durability specifications protect your personnel and your investment.
The International Electrotechnical Commission (IEC) defines Overvoltage Installation Categories (CAT ratings). You must match the CAT rating to the specific physical location of the installation.
CAT III vs. CAT IV
Demarcating these two categories prevents catastrophic overvoltage failures.
CAT III applies to building distribution boards, large fixed loads, and standard industrial busbars. Most indoor factory panels require CAT III rated equipment.
CAT IV applies to the primary outdoor supply origins. This includes the utility service drop, outdoor underground lines, and the primary electrical meter box. CAT IV environments face extreme lightning strike risks. Never install a CAT III device in a CAT IV location. Doing so invites explosive hardware failure during a surge.
Industrial floors deal with heavy dust, moisture, and extreme temperature swings. A standard plastic enclosure will not survive. You must specify appropriate Ingress Protection (IP) ratings.
For dusty manufacturing environments, demand at least IP54. This protects against harmful dust accumulation and splashing water. If the installation faces heavy wash-downs, such as in food processing plants, demand IP65 or IP67 enclosures.
Never buy uncertified electrical equipment. Validating compliance ensures safety and legal protection.
CE and UL Marks: These validate fundamental electrical safety and operational integrity.
RoHS Compliance: Ensures the device contains no hazardous restricted materials.
Calibration Certificates: Precision industrial tasks demand verifiable, traceable calibration certificates (e.g., NIST traceable). Without this paperwork, your energy data holds no legal weight during billing disputes.
Procurement teams often obsess over the upfront hardware cost. This approach ignores the reality of long-term industrial operations. TCO dictates the true financial impact.
Electronic components age. Thermal stress from temperature variations alters their resistance values. This phenomenon causes measurement drift over time. A meter that was perfectly accurate on day one might report a 2% error three years later.
Data drift secretly inflates billing costs. To combat this, look for self-calibrating or temperature-compensated meters. These advanced models adjust their internal baselines dynamically. They resist environmental temperature swings, preserving your data integrity for years.
Every industrial meter requires periodic recalibration to maintain certified accuracy. You must calculate the downtime and financial cost of periodic certified lab recalibrations over a 10-year lifespan.
Best Practice: Ask vendors for their recommended calibration intervals. A meter requiring annual recalibration carries a drastically higher TCO than a model rated for a three-year calibration cycle. Factor in the labor cost of disconnecting the device and the cost of temporary replacement units.
Hardware fails. Software glitches occur. Evaluating the manufacturer's Service Level Agreement (SLA) is crucial. How quickly will they respond to intermittent data drops? Do they offer engineering support for complex EMI interference issues?
Examine the warranty terms for screen degradation. LCD and OLED displays fade in harsh sunlight or extreme heat. A robust three-to-five-year warranty covering environmental screen damage indicates a highly durable product.
Procuring the right equipment demands a logical, step-by-step evaluation framework. Do not let feature bloat distract you from your facility’s core requirements.
The Shortlisting Logic: Start strictly with safety. Determine the required CAT rating and voltage capacity. Next, narrow the field by required accuracy. Choose Class 0.2S for billing and Class 1.0 for general monitoring. Third, filter the remaining options by open-protocol connectivity like Modbus TCP/IP. Finally, make the ultimate decision based on Total Cost of Ownership and build quality.
Next Steps: Advise your procurement and engineering teams to conduct a site audit. Document your existing CT/PT infrastructure ratios. Map out your current SCADA protocol requirements. Complete this audit before requesting vendor demos or downloading specification sheets. This preparation prevents mismatched hardware deliveries.
A: No. This is a common and dangerous misconception. Meters provide comprehensive monitoring and logic triggers. They detect voltage spikes or overcurrent events. However, they lack the physical mechanisms to safely disconnect fault currents. You must always pair metering devices with dedicated protective relays and appropriately sized circuit breakers.
A: Mismatched programming causes almost all initial reading errors. Installers frequently forget to program the correct Current Transformer (CT) and Potential Transformer (PT) ratios into the meter's interface. If the physical CT steps down current at a 500:5 ratio, the digital meter settings must mirror this exactly.
A: Generally, no. You only need Class 0.2S accuracy if the data governs financial billing, tenant sub-metering, or utility custody transfer. For internal load balancing, machinery monitoring, and general factory floor assessments, standard accuracy classes (like Class 0.5S or Class 1.0) provide ample data while saving significant hardware costs.
