Facility managers, system integrators, and industrial engineers often use "energy meter" and "multi-function meter" interchangeably. Specifying the wrong hardware, however, leads to costly mistakes. You risk missing critical diagnostic data. Conversely, you might overspend on unnecessary features. Traditional Electricity Metering solves for basic billing. Modern facilities, however, require active optimization. Simply knowing how much power you used last month falls short of today's operational demands.
This guide strips away marketing jargon. We provide a clear technical and commercial comparison between these two critical devices. We aim to help you align instrument capabilities with your exact operational goals. You must consider compliance requirements and your system integration architecture before purchasing.
You will discover how different standards dictate device selection. We will explore how advanced diagnostics prevent catastrophic equipment failure. By the end of this article, you will know exactly which metering device fits your specific application needs.
Time Philosophy: Energy meters focus on the past (accumulated consumption over time, kWh); multi-function meters focus on the present (real-time system health, kW, V, A, Power Factor).
Primary Application: Choose energy meters for tenant sub-metering, legal trade settlement, and basic cost allocation. Choose multi-function meters for power quality analysis, equipment protection, and resolving operational inefficiencies.
Standardization Divergence: Energy meters are bound by strict legal metrology standards (e.g., MID, ANSI C12.20) for financial accuracy, whereas multi-function meters prioritize power quality and safety standards (e.g., IEC 61557).
System Integration: Multi-function meters act as edge nodes in an Energy Management System (EMS), feeding highly granular data to PLCs or SCADA via protocols like Modbus or BACnet.
An energy meter acts as your financial ledger. Its core function measures the total volume of electrical energy consumed over a specific period. You use this data primarily for utility billing and cost allocation.
The primary metric for this device is the Kilowatt-hour (kWh). If you run a 1,000-watt heater for one hour, the meter records exactly one kWh. These devices have evolved significantly over the decades. They started as mechanical rotating discs mounted on exterior walls. Today, they exist as modern digital and smart energy meters. Many now include basic communication modules to transmit monthly billing data back to the utility company.
Common Mistake: Facility managers often assume an energy meter provides troubleshooting data. It does not. It only tells you how much energy you used, not how well you used it.
A Multi-function Meter serves as a diagnostic hub for your electrical network. Its core function captures real-time, instantaneous electrical parameters alongside basic consumption data. It looks deep into the quality of your power supply.
The primary metrics go far beyond simple kWh. They include:
Voltage (V)
Current (I)
Active and Reactive Power (kW/kVAR)
Power Factor (PF)
Frequency (Hz)
Total Harmonic Distortion (THD)
The value proposition here is immense. A multi-function device moves beyond asking "how much electricity was used." It instead asks "how efficiently and safely is the power being delivered?" This shift in perspective allows engineers to protect sensitive machinery from invisible electrical anomalies.
These two devices operate on entirely different timelines. Energy meters provide historical snapshots. They operate retrospectively. They answer a very simple question: What is the bill for this month?
Multi-function meters provide instantaneous visibility. They operate proactively. They answer urgent operational questions: Why is the motor overheating right now? They help you spot a voltage drop before it trips a breaker. They let you see reactive power spikes as they happen.
Data output formats differ wildly between the two technologies. Energy meters typically output a rolling digital accumulation. You look at the screen, and you see a number steadily increasing. It is simple, clear, and designed for a meter reader to record quickly.

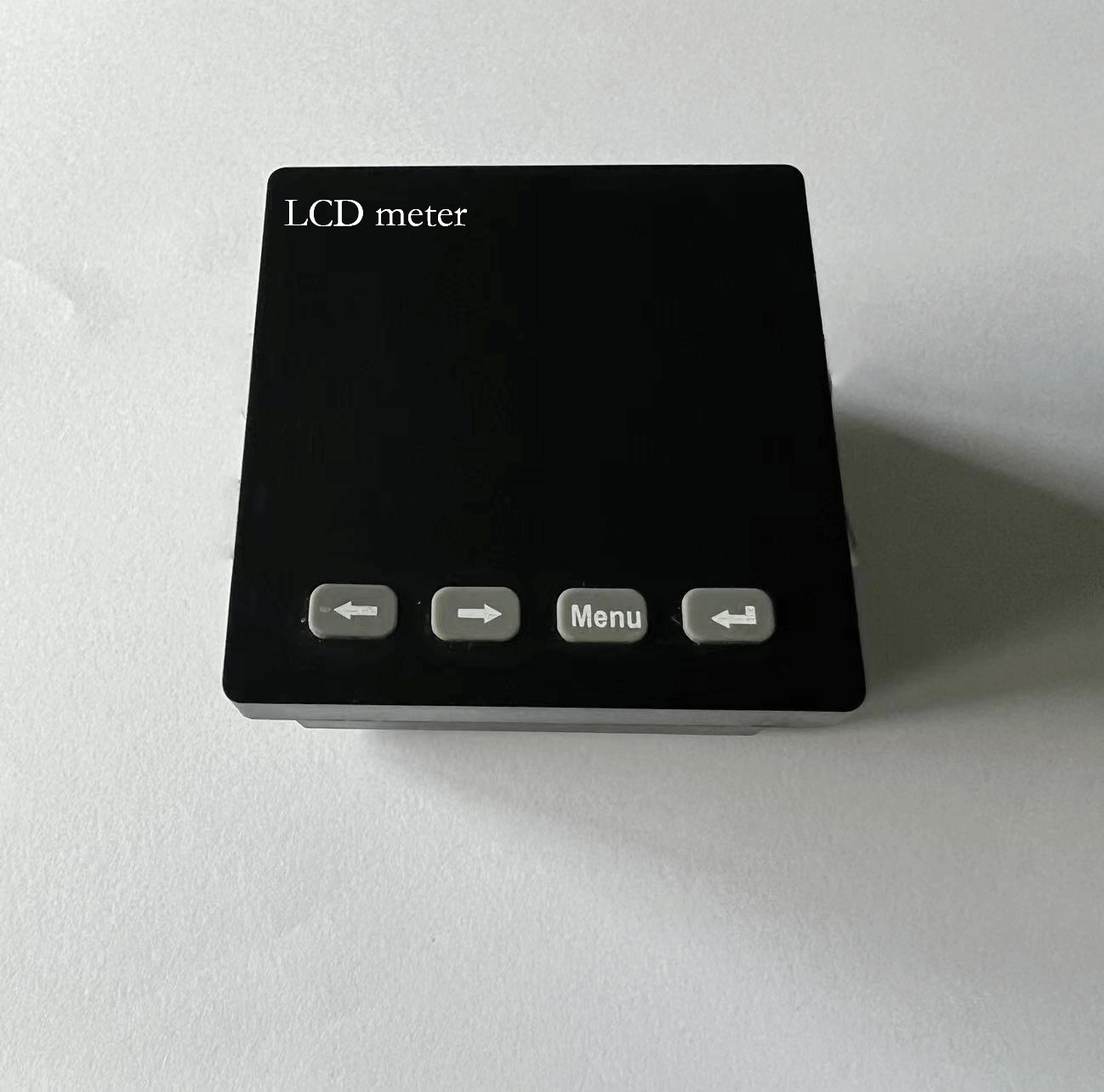

Multi-function devices require more complex displays. They often feature high-resolution LCD or OLED screens. They display live waveforms, harmonic spectrum bar charts, and real-time alerts. Because human operators cannot watch a screen 24/7, these meters usually integrate directly into Supervisory Control and Data Acquisition (SCADA) systems.
Legal certification creates a hard boundary between these instruments. You cannot legally bill a tenant using an uncertified device. The table below illustrates the specific standards governing each category.
Device Type | Primary Purpose | Key Regulatory Standards | Certification Focus |
|---|---|---|---|
Energy Meter | Trade Settlement / Billing | EU MID Directive, IEC 62052/62053, ANSI C12.20 | Financial accuracy under varying temperatures and loads. Tamper prevention. |
Multi-function Meter | Diagnostics / Power Quality | IEC 61010, IEC 61557 | Equipment safety, electrical isolation, and power quality analysis precision. |
Energy Meters: They must pass stringent legal metrology certifications. In Europe, this means the Measuring Instruments Directive (MID). They must maintain strict financial accuracy even if the ambient temperature swings wildly or the load drops to near zero.
Multi-function Meters: These are governed primarily by equipment safety and power quality standards. They must safely handle high transient voltages without harming the operator or the connected network.
Basic electricity metering cannot identify power quality issues. Relying solely on kWh data leaves facility managers blind to invisible threats. For example, a basic meter will not show you voltage sags. It will not alert you to a poor power factor.
These blind spots carry heavy consequences. Utility companies often levy severe financial penalties for poor power factor. Furthermore, sensitive equipment can fail unexpectedly. In semiconductor manufacturing or pharmaceutical production, a millisecond voltage sag can ruin an entire production batch. A simple energy ledger cannot prevent this massive financial loss.
Multi-function visibility enables proactive interventions. This visibility directly drives cost optimization. Consider harmonic distortion. Variable Frequency Drives (VFDs) and LED lighting generate harmonics. These harmonics push excess heat into your transformers.
Without diagnostics, the transformer degrades prematurely. It eventually fails, halting production. With multi-function visibility, you identify the harmonic distortion early. You can install active harmonic filters to protect the transformer. Additionally, tracking real-time peak demand helps you balance loads. You can stagger heavy machinery startups. This simple action drastically reduces maximum utility demand charges.
Modern facilities rely on automated Building Management Systems (BMS). Legacy energy meters often rely on simple, outdated pulse outputs. They send a single pulse for every kWh consumed. This limits data flow severely.
Multi-function devices inherently support broader industrial protocols. They speak the language of modern automation. They connect via RS-485 Modbus, LoRaWAN, or 4G LTE. This connectivity makes them foundational edge nodes for an automated Energy Management System (EMS). You get high-resolution data streamed directly to your cloud dashboards in real time.
Choosing the right hardware requires matching your operational pain points to specific instrument capabilities. Below is an evaluation framework to guide your purchasing decision.
Imagine you manage a large commercial office building. You need to invoice multiple tenants for their individual electricity usage.
Success Criteria: You need absolute legal compliance. You require high billing accuracy to prevent tenant disputes. The device must feature a tamper-proof design. Finally, you need a low per-unit cost because you are buying hundreds of meters.
Recommendation: A Smart Energy Meter with MID or ANSI certification. Do not pay for harmonic analysis features you will never use. Focus purely on revenue-grade accuracy and legal metrology compliance.
Imagine you operate a heavy manufacturing facility. Unexpected downtime costs thousands of dollars per minute.
Success Criteria: You need real-time fault detection. You must monitor power factor to avoid utility penalties. You need harmonic analysis to protect aging motors. The device must integrate seamlessly into your existing EMS.
Recommendation: A Multi-function Meter. The upfront cost is higher, but the diagnostic data prevents catastrophic motor failures. It pays for itself by keeping the production line moving.
You must evaluate the Total Cost of Ownership (TCO) before making a final decision. Consider the following three factors:
Hardware Cost: Multi-function meters carry a significantly higher upfront cost. They require complex microprocessors and high-resolution screens to process and display real-time waveforms.
Installation Impact: Both device types commonly support standard 35mm DIN rail mounting. However, advanced meters often require more complex configurations. You must wire external Current Transformers (CT) and Potential Transformers (PT) accurately. Incorrect CT polarity is a leading cause of faulty readings during commissioning.
ROI Driver: They deliver a return on investment differently. Advanced diagnostic meters recoup costs by preventing unexpected downtime and eliminating utility power factor penalties. Standard billing meters recoup costs by ensuring accurate, legally binding tenant revenue recovery.
The metering market rarely stays static. Modern digital meters are increasingly becoming "hybrid" devices. Manufacturers now combine baseline legal metrology with advanced power quality analytics. You can now buy a single unit that provides MID-certified billing data while simultaneously streaming THD metrics to your SCADA system.
This market convergence simplifies procurement for complex facilities. It allows you to consolidate hardware. You no longer need separate billing and diagnostic panels. However, this convergence also introduces confusion.
Best Practice: Always verify certifications independently. Do not assume an advanced meter is legally approved for billing just because it records kWh accurately.
Many high-end diagnostic tools measure energy with incredible precision. Yet, they lack the specific legal tamper-seals and certifications required by law. If your end goal involves financial transactions or tenant invoicing, you must check for explicit legal trade certifications like the MID directive. Using an uncertified instrument for billing can lead to severe legal liabilities and invalidated contracts.
Your hardware choice ultimately dictates your energy management strategy. You must base your decision on your primary operational pain point. If your main concern revolves around financial accounting, tenant billing, and basic compliance, choose a certified Energy Meter. It serves as your irrefutable financial ledger.
If your main concern revolves around operational resilience, equipment efficiency, and real-time fault detection, choose a Multi-function Meter. It serves as your proactive diagnostic hub. It empowers your engineering team to fix problems before they cause expensive downtime.
We strongly encourage engineers and facility managers to audit their current electrical infrastructure. Evaluate your blind spots. Consult with a metering specialist to specify the exact communication protocols and accuracy classes needed for your upcoming upgrade. Do not guess; specify with intent.
A: Only if the specific device model carries mandatory legal metrology certifications (like the MID directive in Europe or local utility board approvals). Uncertified multi-function meters are for internal management only.
A: Not usually. Most modern multi-function meters use standard DIN rail mounting or standard panel cut-outs, and can utilize split-core Current Transformers (CTs) to avoid major rewiring.
A: No. High-quality digital meters with industrial-grade microprocessors often outlast older mechanical meters, which are prone to physical friction and mechanical wear over time.
A: "Electricity metering" is the broad umbrella term. However, an "Energy Meter" strictly measures electrical volume over time (often confused broadly with gas/water energy meters), whereas a "Multi-function Meter" captures a comprehensive real-time electrical profile.
