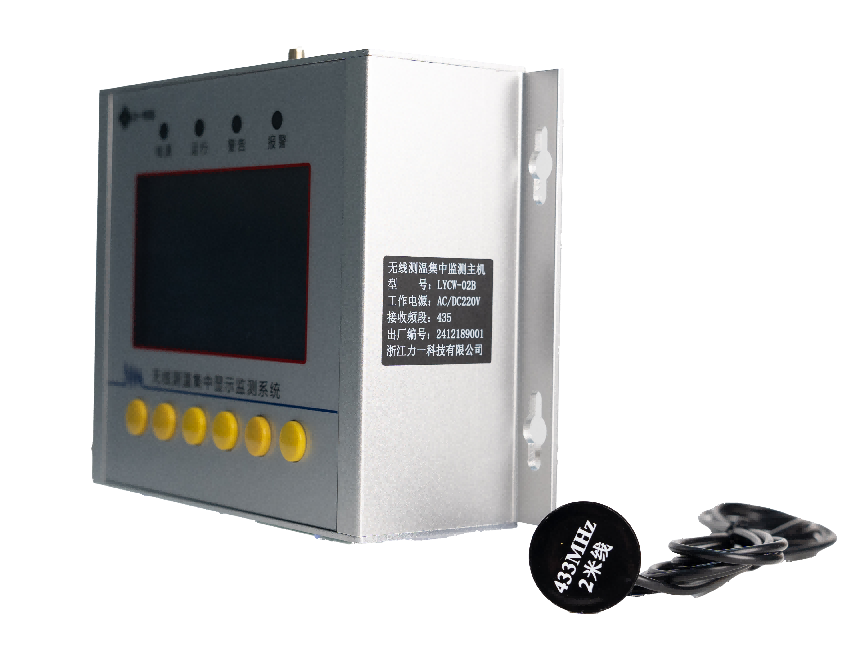

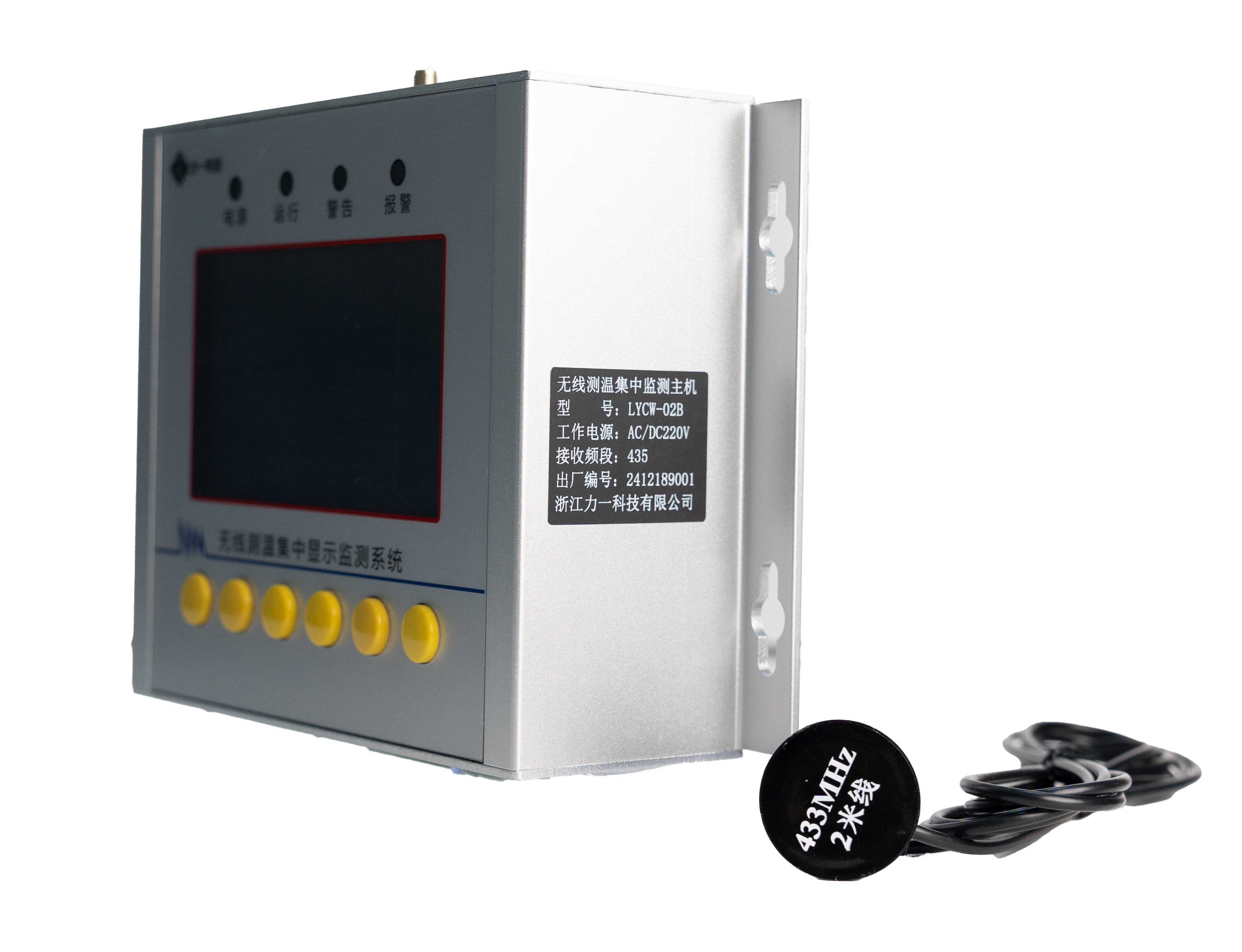

LY - CWA 01 Wireless Temperature Measurement Centralized Display Monitoring System
1. Equipment
In the power system, there are a lot of transmission processes from power plants to power transmission and transformation equipment and to end-user electrical appliances.
The variable temperature needs to be detected. High-voltage equipment connection parts such as busbar connection points, various switches, circuit breakers, main transformer bushing clamps,
High-voltage cable joints are prone to poor contact and contact due to climate changes, material aging, rust, looseness, etc.
The resistance increases. When a large current passes through, it is easy to burn out the equipment, and in serious cases, it may even cause a fire or explosion.
In view of the current status of high-voltage equipment temperature monitoring, our company has launched a high-voltage electrical contact temperature online monitoring system to solve
The conventional temperature monitoring methods have the problems of heavy workload, inaccurate measurement, and untimely measurement.
The online temperature monitoring system consists of a server backend and wireless temperature measurement equipment. Users can use the backend software to understand the wireless temperature measurement
The temperature data reported by the equipment is used to analyze the operating status of the high-voltage equipment.
Wireless temperature measurement equipment can be installed at the connection part of high-voltage equipment to dynamically track the operating status of temperature rise fault points in real time.
Tracking monitoring can not only prevent and eliminate such accidents, but also provide safe and reliable analysis and scientific adjustment of power systems.
Provide important basis for decision making .
2. Product Features
Advanced high-performance industrial-grade microprocessor with strong data processing and information storage capabilities, high reliability and fast operation speed;
A variety of sensors are available, and the appropriate temperature sensor can be selected according to site requirements
Humanized menu design makes on-site debugging simple, convenient and fast.
Online temperature real-time measurement, high temperature accuracy and strong real-time performance
Using advanced storage technology, the set parameters will not be lost after power failure
Wall-mounted installation, easy installation and disassembly
With over-temperature alarm record query function, 200 historical over-temperature records can be queried
With RS485 communication function, data can be transmitted to the backend in real time
With RJ45 network interface, data can be uploaded to the cloud platform and APP, and local network communication can also be achieved
With LoRa wireless long-distance data transmission to the local background, no need to lay communication lines on site
With 2G\4G Internet access function, it can realize network data connection and docking with cloud platform and APP
%1、 Function Configuration
Function configuration (optional) | Functional Description |
Internet access | 2G\4G Internet access, Ethernet interface |
Communication interface | Two-way 485 Interface, LoRa Wireless Communications |
Alarm output | Can have two relay outputs |
Wireless Temperature Sensor | Maximum number of connections 240 (two sensors share 240 indivual) |
Wireless Temperature and Humidity Sensor | 433M Active, 433M Passive 、433M Micro active, 433M Micro passive |
Temperature sensor type | 2G\4G Internet access, Ethernet interface |
Note: The above functions are all optional functions, and corresponding functions can be selected according to actual needs.
Four 、Product Features
4.1 , Key Features
Basic Functions | Function Introduction |
Operational functions | Button operation |
Receiving Data | operating voltage uploaded by the wireless temperature sensor Receive temperature and humidity values from wireless temperature and humidity |

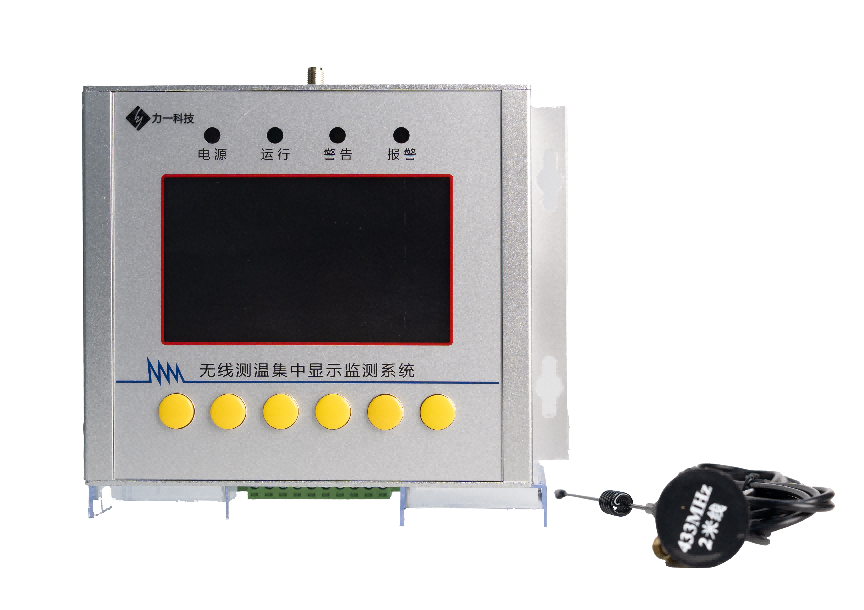

Display data | The received data is displayed in color, the display effect is more intuitive, the backlight switch is controllable, and it is suitable for multiple In various applications, when the wireless temperature and humidity are connected, press the left and right keys on the host to switch to view the temperature. Humidity data |
Clock Display | Real-time clock display and used as the time basis for event recording |
Parameter settings | All parameters can be set flexibly, easy to operate, data will not be lost when power is off |
Alarm output | When an alarm event occurs, the relay dry contact signal is output and a buzzer alarm sound is emitted . hint |
Temperature alarm record | Record the temperature, start time and end time of the temperature measurement location where the alarm has occurred, up to Saveable 200 Records, when more than 200 When there are records, the earliest record is automatically overwritten |
Password Management | Password management is adopted. When setting parameters, you must enter a password. The password is divided into user password And system password, enter the system password to perform more advanced settings |

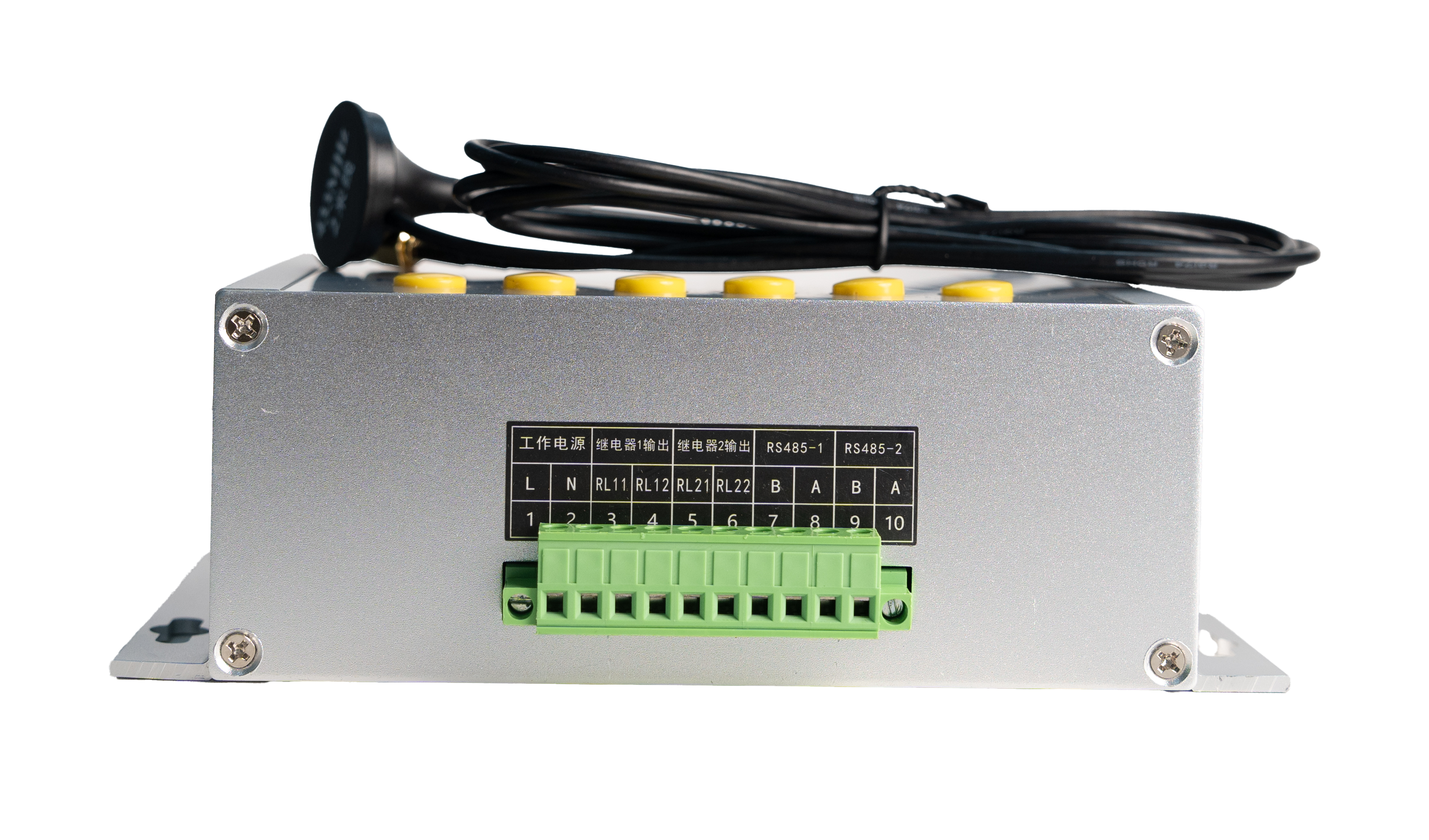

Communication function | RS485 interface: local 485 data communication (two channels optional) |
LoRa module: local remote transmission without laying communication lines (optional) | |
2G\4G Module: Network data transmission with cloud platform and APP Use (optional) the factory default cloud platform | |
Ethernet port: TCP/IP communication interface (optional) |
five , Product performance parameters
Function parameters | Technical Parameters | |
Wireless parameters | Wireless frequency | 433MHz |
Number of wireless | ≤240 pieces | |
Environmental parameters | How it works | Wireless temperature and humidity sensor (optional) |
Communication parameters | Local Communications | RS485 interface, communication distance does not exceed 1.2KM |
Ethernet port, internal LAN communication, network communication | ||
Remote communication | LoRa wireless data transmission, wireless remote communication does not exceed 1KM | |
2G\4G module, network data transmission, use with cloud platform and APP | ||
Power consumption | ≤5VA | |
Operating temperature | -10～70℃ | |
Operating humidity | ≤90%RH, no condensation, no corrosion | |
Relay contacts parameter | AC220V/5A passive contact (two-way output optional ) | |
Protection level | IP20 | |
Insulation resistance | ≥100MΩ (temperature between 10~30℃, relative humidity less than 80%) | |
Installation | Wall Mount | |
Operating voltage | AC85-265V/DC110-370V | |
