Many engineers believe high NEMA or IP ratings completely protect enclosures from moisture. They assume sealing the cabinet stops external water ingress perfectly. However, this common misconception ignores internal condensation caused by temperature drops and shifting dew points. When trapped air cools, moisture condenses directly on sensitive components. This trapped moisture quickly leads to terminal oxidation and creeping tracking currents. Left unchecked, it causes sensor drift and even catastrophic arc flashes. Such failures halt production lines and endanger personnel. This article serves as a comprehensive technical evaluation guide. You will learn how to properly size, specify, and integrate a Switchgear Dehumidifier into your electrical systems. We explore balancing strict electrical compliance requirements alongside vital thermal management strategies. Proper humidity management improves system reliability dramatically. It protects expensive variable frequency drives and delicate programmable logic controllers. Read on to master enclosure moisture control and protect your critical infrastructure investments.
Enclosure sealing is not enough; internal humidity must be actively maintained between 45%–55% RH to prevent dew point failures.
Sizing requires calculating enclosure volume (baseline ~0.2 L/day per m³) and applying multipliers for leakage and door cycle frequency.
Selecting the right technology depends heavily on cabinet size and ambient temperature (e.g., TEC/Peltier for small panels, Desiccant for environments below 15°C).
Adding dehumidification introduces latent heat; proper HVAC control logic is required to prevent cooling and drying systems from fighting each other.
Engineers often rely heavily on IP or NEMA ratings to protect control panels. A tightly sealed cabinet effectively blocks rain, dust, and washdown spray. However, sealing an enclosure creates a hidden vulnerability. It traps ambient moisture inside. High enclosure ratings offer zero protection against the physical laws of thermodynamics.
A sealed cabinet operates safely while powered and warm. Problems arise when systems power down or ambient temperatures drop. Night shifts, sudden winter weather fronts, and system off-cycles cause the internal air volume to cool rapidly. As the temperature falls, the trapped air drops below its dew point. This physical change forces moisture out of the air. Water films form directly on printed circuit boards (PCBs) and bare copper busbars. The tight enclosure seal acts like a greenhouse, preventing this condensation from escaping.
Moisture exposure inside electrical panels triggers several catastrophic failure modes. You must understand these specific risks to justify active humidity control.
Accelerated Corrosion: Copper terminals oxidize rapidly when exposed to damp air. This oxidation builds a layer of copper carbonate. It increases electrical resistance, restricts current flow, and generates dangerous excess heat at connection points.
Insulation Degradation: Condensation breaks down insulating materials on wiring and component housings. This degradation leads to creeping tracking currents. Over time, it causes micro-arcing and eventual hard short circuits.
False Trips: Programmable logic controllers (PLCs) and variable frequency drives (VFDs) remain highly sensitive to ambient conditions. Minimal moisture causes sensor drift, logic errors, and erratic system behavior, leading to nuisance tripping.
Switchgear failures carry massive financial penalties. Unplanned downtime, expensive replacement parts, and severe safety hazards cost manufacturing facilities thousands of dollars per hour. Compare these extreme risks against the incredibly low upfront investment of an Industry Dehumidifier. Active humidity control offers exceptional return on investment. It prevents arc flashes, extends expensive component life, and ensures steady production metrics. Ignoring internal condensation simply shifts the cost burden onto future emergency repair budgets.
Selecting the right technology depends entirely on basic physics. You must match the operating principle to your specific environment. Cabinet size and ambient temperature dictate the best engineering approach.

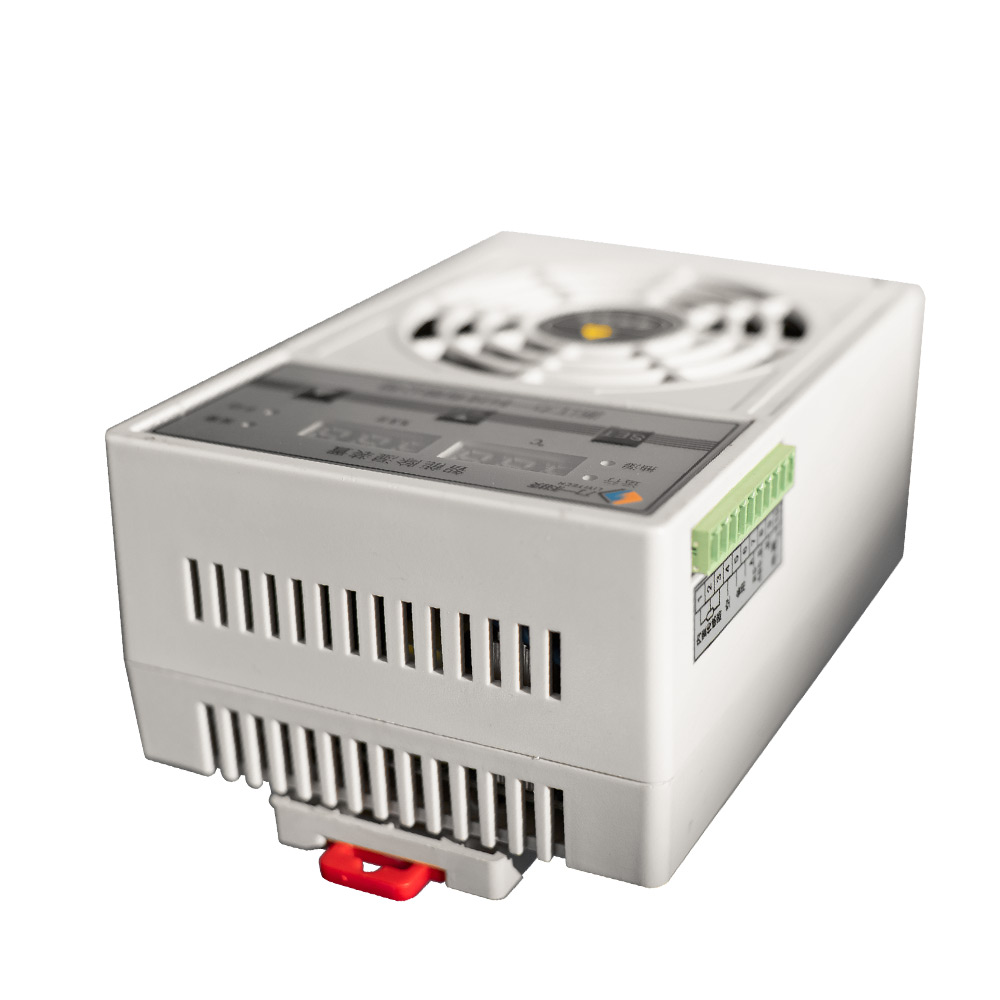

Solid-state cooling offers a reliable way to manage moisture in restricted spaces. Thermoelectric units utilize the Peltier effect to chill an aluminum plate and condense water vapor directly from the circulating air.
Best for: Small enclosures measuring under 1.5 cubic meters.
Pros: They feature ultra-compact designs and solid-state reliability. They contain no moving parts except for a small circulation fan. They boast very low power consumption, typically drawing just 10W to 60W on standard 12V or 24V DC circuits.
Cons: Their absolute extraction capacity remains quite limited. They cannot handle massive, leaky cabinets effectively or pull high moisture volumes during extreme humidity spikes.
Refrigerant models function exactly like miniature air conditioners. A specialized micro-compressor cools evaporator coils to draw high volumes of moisture from the air.
Best for: Large enclosures located in warm, high-humidity environments operating above 15°C.
Pros: They provide incredibly high moisture extraction rates. They handle heavy internal humidity loads efficiently, making them ideal for large multi-bay motor control centers.
Cons: Performance drops drastically in cold conditions. Operating them below 15°C introduces severe risks of evaporator coil frosting, which halts the drying process entirely.
Desiccant systems use a specialized chemical wheel typically coated in silica gel. The rotor adsorbs moisture directly from the air stream through a chemical binding process.
Best for: Unheated outdoor cabinets, wind turbine nacelles, or cold storage facilities dropping well below 15°C.
Pros: This technology functions completely independently of the local dew point. It performs reliably in freezing temperatures without any risk of coil icing.
Cons: It generally requires higher energy input. The internal PTC heater needs extra power for the continuous thermal regeneration cycle that dries out the chemical rotor.
Below is a quick reference chart comparing these three primary technologies to help guide your selection process.
Technology Type | Ideal Cabinet Size | Safe Temperature Range | Primary Advantage | Major Limitation |
|---|---|---|---|---|
Thermoelectric (TEC) | < 1.5 m³ | Moderate to Warm | Compact, highly reliable | Low daily extraction limit |
Refrigerant | Large (> 1.5 m³) | Above 15°C | High extraction capacity | Susceptible to coil frosting |
Desiccant | All sizes | Below 15°C | Frost-proof operation | High energy consumption |
Guessing humidity loads often leads to chronic equipment failures. You must apply hard engineering logic to evaluate your options. Use this structured four-step framework to size your unit perfectly and prevent moisture buildup.
Step 1: Baseline Volume Calculation
Start by accurately measuring your sealed space. Multiply height, width, and depth to find the total cubic meters. The engineering standard requires removing approximately 10 to 20 mL of water per hour per cubic meter. This metric translates to roughly 0.2 liters per day for every cubic meter of internal air volume.
Step 2: Environmental Baseline Testing
Never trust maximum theoretical extraction numbers blindly. Always verify manufacturer specifications against a strict high-humidity baseline. The accepted industry standard evaluates capacity at 30°C and 80% relative humidity (RH). Ensure the unit meets your daily volume requirements under these exact thermal conditions.
Step 3: Leakage and Door Cycle Multipliers
Cabinets rarely remain perfectly sealed in the real world. You must adjust your baseline capacity based on physical wear and daily operational habits. Apply the following multipliers to your baseline calculation.
Step 4: Safety Margin
Always add a 15% to 20% capacity buffer to your final number. This safety margin accounts for sudden extreme weather events. Flash storms and multi-day high-humidity heatwaves will easily overwhelm a perfectly sized, borderline unit. Oversizing slightly ensures steady performance during unpredictable environmental spikes.
To simplify Step 3, use the multiplier reference table below to assess your current installation realities accurately.
Cabinet Condition / Usage Profile | Required Multiplier | Engineering Rationale |
|---|---|---|
Brand new cabinet, tightly sealed, rarely opened | 1.0x (Baseline) | Internal moisture is strictly limited to initial trapped air. |
Older cabinet with slightly degraded door gaskets | 1.25x | Micro-leaks pull in ambient humidity constantly over time. |
Frequent daily access for maintenance or resetting | 1.5x | Large volumes of wet ambient air enter during every door cycle. |
Applying this formula guarantees you specify the exact right capacity. For example, a 2 cubic meter cabinet needs a baseline of 0.4 liters per day. If maintenance opens it daily, you multiply by 1.5. The required capacity becomes 0.6 liters per day. Adding a 20% safety margin pushes the final specification to 0.72 liters per day. This structured approach prevents dangerous undersizing.
Purchasing the correct hardware solves only half the problem. Field experience reveals many harsh integration realities. Avoiding common setup errors ensures your control system operates reliably for years.
Physics dictates every dehumidification process releases latent heat. This thermal load creates significant integration risks. Poorly planned systems often enter destructive control logic loops. The heat released by the dehumidifier can unintentionally trigger the primary panel cooling fan. The cooling fan then activates and draws in fresh, wet outside air to lower the temperature. This influx of wet air forces the dehumidifier to work even harder, releasing more heat. We highly recommend smart zoning and logic integration. Program your HVAC controllers so cooling and drying functions do not fight each other.
Extracting water means you must remove it safely from the enclosure. Condensate must route entirely out of the cabinet to prevent secondary evaporation.
Gravity vs. Pump: Gravity drains work well if the unit mounts high up. However, capillary action can hold water inside narrow tubes. Ensure tubes have a continuous downward slope. Otherwise, you need a reliable miniature condensate pump to actively push water out.
Backflow Prevention: Never underestimate air pressure differentials inside electrical panels. You must use IP-rated waterproof cable glands for routing hoses through the sheet metal. Install one-way drainage valves immediately. Without these check valves, the cabinet's powerful exhaust fans will suck humid outside air right back through the drain tube.
Proper installation heavily dictates internal air flow dynamics. Install the unit near the bottom of the cabinet. Cold, damp air naturally settles at the lowest physical point. However, you must maintain perfectly unobstructed airflow. Direct the dry, slightly warm exhaust air away from sensitive, heat-generating components. Blowing warm air directly onto a heavily loaded VFD will cause dangerous thermal stressing.
Common Installation Mistakes to Avoid:
Coiling the drain tube at the bottom of the cabinet, creating a water trap.
Mounting the sensor directly next to a heat source, causing false humidity readings.
Ignoring the need for a dedicated breaker for the dehumidifier unit.
Selecting long-term solutions requires evaluating authoritative vendor credentials. You must protect your existing infrastructure investments while systematically reducing the total cost of ownership. Careful planning at this stage prevents audit failures later.
Altering electrical cabinets carries strict regulatory consequences. Drilling arbitrary holes for drainage ports can inadvertently void your safety ratings. Ensure your retrofitting process strictly maintains UL 508A and IEC 61439 compliance. Use certified glands, properly rated conduit, and sealed mounting brackets. These accessories preserve original IP and NEMA ratings while allowing moisture to escape safely.
Critical infrastructure demands intelligent oversight. Modern manufacturing facilities require seamless data integration. Evaluate units featuring robust RS-485 interfaces utilizing Modbus protocols for remote monitoring. Auto-restart capabilities remain absolutely essential to recover quickly after unexpected site power loss events. Pair your hardware with external hygrometer settings. You should target a highly stable internal environment between 45% and 55% RH to maximize component lifespan.
Long-term reliability depends heavily on regular upkeep. Factor daily maintenance routines into your TCO calculations. Washable air filters must remain easily accessible to technicians. Schedule strict drain pan cleaning intervals to prevent biological growth and clogs. Understand the expected lifespan of internal compressors and TEC modules before finalizing a purchase. Finally, always verify volatile environment restrictions. You must specify ATEX or explosion-proof models if operating near flammable gases or combustible dust.
Choosing the optimal control panel drying system demands careful technical evaluation. It requires balancing exact cabinet volume calculations against ambient temperature extremes. Proper integration relies entirely on tight HVAC control logic and safe drainage routing. Whether you search for a high-capacity unit or a highly efficient Duhumidifier, precision engineering prevents catastrophic electrical failures. Active humidity control stops corrosion, extends component lifespan, and completely eliminates the dew point trap.
To move forward successfully, take these action-oriented next steps:
Measure your internal enclosure dimensions accurately to calculate your baseline volume.
Audit your current door gasket integrity to determine the necessary leakage multiplier.
Determine your absolute minimum winter operating temperatures to rule out freezing risks.
Establish your specific BMS integration and telemetry requirements before requesting customized vendor quotes.
A: The ideal target ranges from 45% to 55% relative humidity (RH). Dropping the humidity lower wastes significant energy and increases the risk of electrostatic discharge (static buildup). Conversely, allowing humidity to rise above 60% drastically increases the risk of internal condensation and component corrosion.
A: No. Standard commercial units lack vital safety and integration features. Industrial units feature DIN-rail mounting options and utilize specialized fire-retardant materials. They also offer robust RS-485 interfaces to integrate seamlessly with BMS and SCADA systems. Commercial models simply cannot withstand harsh factory environments.
A: Several factors cause this issue. The unit is likely undersized for the total cabinet volume. Alternatively, it might be fighting a severely leaky door gasket, drawing in endless ambient moisture. Finally, check for a drain line backflow issue sucking wet air back inside.
