1. Fully Sealed & Environmentally Resilient Design
Stainless Steel Gas Tank: All high-voltage live components are hermetically sealed within a 3mm 304 stainless steel gas tank, welded by a state-of-the-art 3D five-axis laser system imported from TRUMPF, Germany. This precision welding guarantees exceptional airtightness, structural integrity, and aesthetic appeal.
German-Made Quality Assurance: Utilizing SEILER’s fully automated helium leak detection equipment, the gas tank achieves an industry-leading leakage rate of <0.01% per year, ensuring a lifespan exceeding 30 years with zero maintenance. The IP67-rated gas tank and IP4X-rated outer shell shield the RMU from dust, water, and corrosive elements, enabling stable operation in extreme temperatures (-40°C to +70°C).
2. Compact & Modular Flexibility

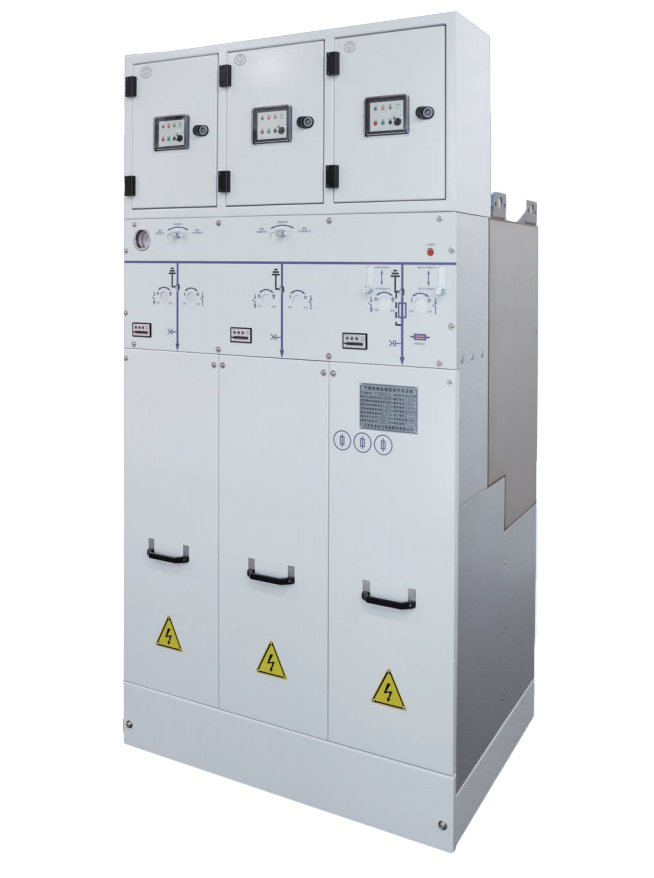

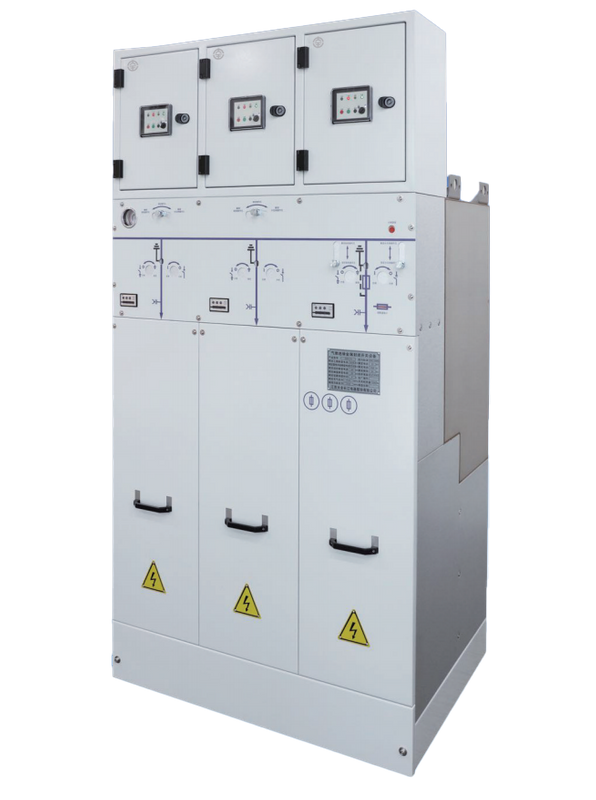

Space-Saving Design: With a compact footprint (360/425mm width x 780mm depth x 1865mm height), the DQS RMU is ideal for space-constrained installations, such as urban substations, data centers, and underground facilities.
Scalable Configuration: Its modular architecture allows seamless customization, enabling quick assembly of load switches, fuses, and circuit breakers to meet any power distribution requirement. Whether for ring networks, radial systems, or complex grid setups, the DQS RMU adapts effortlessly.
3. Enhanced Safety & Operational Excellence
Interlock & Insulation Protection: The extended busbars are fully insulated and shielded, minimizing partial discharge risks. Simple yet effective mechanical and electrical interlocks prevent misoperation, safeguarding both equipment and personnel.
High-Performance Operation: The reliable operating mechanism ensures a mechanical lifespan of 10,000 cycles for circuit breakers and load switches, surpassing industry standards. The load switch-fuse combination units achieve transfer currents of 12kV/1750A and 24kV/1400A, guaranteeing efficient fault protection.
4. Intelligent & Factory-Integrated Solutions
Automated & Smart Grid Ready: Offering factory-integrated automation, the DQS RMU supports intelligent monitoring of critical parameters, including temperature, breaker status, and mechanical performance. This enables remote control, predictive maintenance, and seamless integration with smart grid systems.
Consistent Quality Assurance: Manufactured on fully automated assembly lines, each unit undergoes rigorous quality checks, ensuring uniform performance and reliability across the entire product range.
